Metal Shredder Hummer Mill Metal Shredder Recycling Machine

Product Description

Product Description
Metal Shredder Hummer Mill Metal Shredder Recycling Machine
Scrap Metal Shredder is one metal pre-shredder, processing most heavy waste metal, such as whole car, aluminum/iron bundles, engine, thick iron plate, metal drum, motorcycle frame, etc.Double shaft shredder controlled by PLC through automatic detection, alarm and overload protection, can adjust and control the feeding quantity automatically. It will automatically reversal when the motor pressure exceeds the set rated pressure, then automatically forward into normal crushing action.
Shredder is sort of twin shaft shredding machine, widely used for household garbage, municipal solid wastes, scrap metal recycling and waste rubber like car and truck tires downsize, also apply to size reduction of IBC tank, plastic/metal barrel, waste furniture, sofa, mattress, home appliances and other large size materials, which inconvenient for transportation, the shreds after processing can also be used for secondary resources recovery.
Application
Scarp Metal: steel IBC cube, metal sheet such as copper, aluminum or iron, aluminum castings and crush blocks, motorcycles, car engine housings, oil filters,Materials Steel Scrap - Various metal scrap, metal drum, paint bucket, gasoline drum, bicycle, color steel tile, steel sheet etc Aluminum - Castings, Profiles, UBC's etc.
Double shaft shredder machine to shred whole scrap vehicle, scrap metal, metal oil drum down to around 50-200mm, which is cost-effective, safe and durable. Our scrap aluminum/metal recycling plant adopts a specially designed heavy duty Metal crusher for the preliminary shredding, and a heavy-duty hammer mill for further processing. After that, a dust collection system is used for removing the dust, a powerful magnetic separator for separating the ferrous metal.

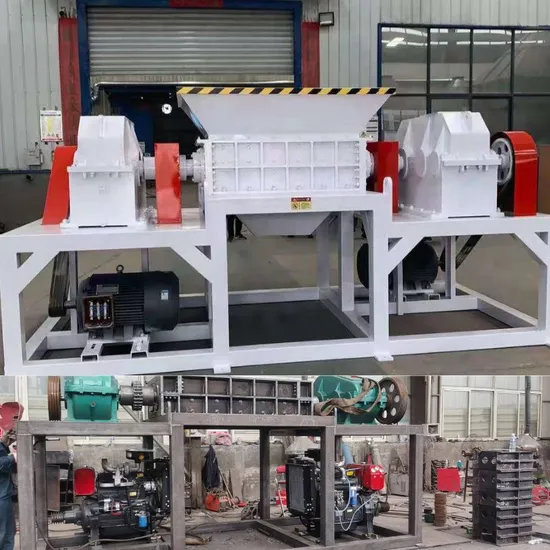

Detailed Photos
Working method: low speed high torque shear crushing, crushing soft and hard materials, low noise, low dust
Drive mode: electric motor + gearbox
Cabinet type automatic positive and negative conversion distribution cabinet, stable control performance
Overload protection When the device is overloaded, it automatically stops reversing and automatically returns to unloading. After unloading, the device resumes to advance.
Blade material 55sicr(customizable); 9CrSi for detachable blade head
The shredding blade and shaft are fixed in hexagonal shape to ensure good torque transmission, easy disassembly and easy maintenance.
According to the actual situation of customers, the design and configuration of hopper/loading conveying device/discharging conveying device/magnetic separation
Product Parameters

Model	MCS-800	MCS-1000	MCS-1200	MCS-1400	MCS-1600	MCS-2000
Main shaft power	22kw*2	30kw*2	37kw*2	45kw*2	55kw*2	110kw*2
Main shaft rotary speed	18-20rpm	18-20rpm	18-20 rpm	14-16 rpm	14-16 rpm	16-18 rpm
Working capacity	1-2t/h	2-3 t/h	3-5 t/h	5-8 t/h	8-15 t/h	15-20t/h
Weight	3000kg	8000 kg	15000 kg	20000 kg	25000 kg	36000 kg
Finished ships size	3-10cm	3-10cm	3-10cm	3-10cm	3-10cm	3-10cm
Feeding tank size	0.82×0.9m	1.2×1m	1.4×1m	2×2m	2.3×2m	2.5×1.4m
Dimension	2.6×2×1.9m	3×2×1.9m	3.2×2×1.9m	4×1.7×2.4m	8×2.5×2.4m	8.2×4×4.3m

More details Model configuration can be customized according to customer needs!

The shredder machine can easily pre-crush:
•plastic sheets;
•electronic waste;
•scrap (components,subassemblies;consumables);
•metals (lead,aluminum,copper,cable,barrels,sheet scrap,sheet metal pieces left over from production processes);
•aluminum cans;
•wood (wooden pallets or fruit boxes);
•plastic (plastic bottles or canisters);
•waste tire,rubber;
•waste household appliances;
•paper waste (cardboard,newspaper,office paper,books,magazine,kraft paper,paper core,cardboard tube,paper packaging material);
•textiles (rags,garments,carpet);
•animal bones and organic waste. Packaging & Shipping
Small shredding machine wooden box packaging delivery, more than 1000 shredding machine container delivery.
Company Profile
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
FAQ
1,How do I get the right device for my needs? Tell me what are your raw materials? Metal, plastic, wood, plants, copper wire and more? What is the approximate size of the raw material in millimeters? Describe the shape of the raw material. How many kilograms of raw materials are processed per hour? Capacity 500-1000kg or 5000-8000kg? What is the final product? 50mm blocks or separated metal and plastic particles and so on? 2,Why choose us?We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
