Calcium Carbonate, Fineness Resin PP Additives Compound Granulator

Product Description

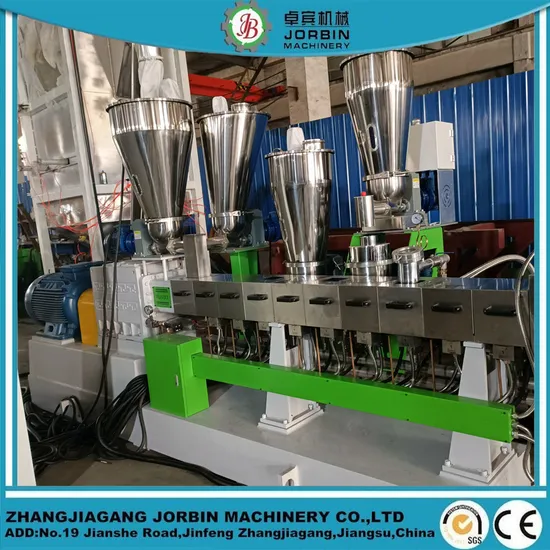

twin screw extrusion granules making machine for PE, PP, TPE and Copolymers such as SBS Color batches Filler and additives compounding extrusion granulator.The machine with High-torque twin-screw extruding screw unit, this is a new-generation high-speed, high-torque and high-power twin screw extruder realizing technological promotion based on the existing product by drawing experience from the advanced manufacturing technology in China. Screw elements install like building blocks, piece by piece. Differ design can be for different material.

The advantages of this machine
1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. This machine can carry out ideal viscosity of PET without complicated precystallization dryer system. Only a bit IV will be reduced. It can improve IV in the condition of adding some suitable additive.
5. The machine wih long life.
other type of these kinds of machine

Model	TSSK20	TSSK30	TSSK35	TSSK50	TSSK65	TSSK72	TSSK92
Screw diameter(mm)	21.7	30	35.6	50.5	62.4	71.2	91
Rotary speed(rpm)	600	400	400/600	500/600	400/500	400/500	400/500
Main motor power(kw)	4	11	11/15	37/45	55/75	90/110	220/250
L/D	32-40	28-48	32-48	32-48	32-48	32-48	32-40
Capacity(kg/h)	2-10	5-30	10-80	20-150	100-300	300-600	600-1000

Machine line
Big bag station/The ton bag unloading staion: when the raw material is packed in big ton bags, then our this machine can unpack it and send the material into the extrusion machine
Rotary charger send the material into the feeder and then the feeder feed the Raw material into the extruder equally and smoothly.Main feeder and several side feeder can feed different kinds of the material into the extruderIf there is some material need to be weighted, the we can use a weightlessness feeder to weight it, so that the material can be feeded into the extruder exactly.Screw elements, barral and the core of the machine
Screen changer,The material come out from the die(pull trap like noodles pelletizing way, PET must use this pelletizing way. PC, KPE ABS are also need pull strap pelletizing way. )Water tank can cool the material and the gale dryer will blow the water on the surface of the mateiral, then the pelletizer will cut the material into granules.Speed of pelletizer can be controlled, so that the size of granules can be tested by the speed of the pelletizer. Then you can use a dryer mixer to dry the material again. The dryer mixer will dry the material with hot wind.Finally the material can be send into the silo or send to big bags to be packed.We can use electricl cabinet button to operate the total line, also we can use a PLC screen touch to operate the total line, the PLC screen touch can be moved, so that you can operate each equipment beside it and look at the equipment.al line, the PLC screen touch can be moved, so that you can operate each equipment beside it and look at the equipmen Some more similarly machine
Rotary charger send the material into the feeder and then the feeder feed the Raw material into the extruder equally and smoothly.
Two side feeder to feed glass or other additives into the extruder.
Vacuum degassing on the extruder,because there are two side feeder on the extruder, so there no need to use natural degassing, one vacuum degassing is enough.
Materil come out from the die
Cooling for the screw( water controlled by electric valves)
Gale(dry the material)Pelletizer(cutter the strap into pellets)
Electric cabinet inside
If you need more details of this kind of machine kindly contact me, I can send you more detail photoes and vedios.
1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
