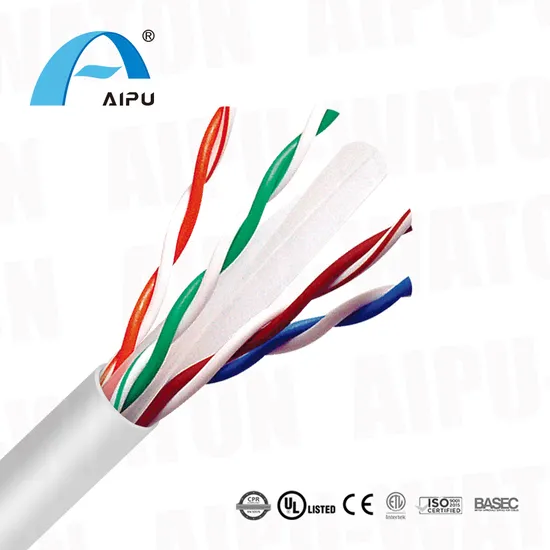

CAT6 U/UTP Bare Copper Data Cable, 4-Pair Computer Cable, Network Cable, 305m CPR Approval Belden, Commscope, Panduit UL, ETL, CE PVC/LSZH/PE

Product Description

Cat6 ECA Lan Cable, U/UTP 4 Pair Ethernet cable, Solid cable, 305m Standards
ANSI/TIA-568.2-D | ISO/IEC 11801 Class D | Euro CPR ECA
Product Description
Aipu-waton CAT6 U/UTP Cable Provide 250MHz bandwidth in 100m, typical speed rate: 1000Mbps. This network cable is widely used for building structured cabling in working area and horizontal cabling. Superior OFC (oxygen free copper) conductor, reliable electric transmission, meets or exceeds Cat.6 standard, provide plentiful redundancy for system link, fast and convenient installation.The LSZH cable jacket is conform to the standard IEC 60332-1, LSZH-1 and CPR Euro Grade Eca.
Product Parameters

Product Name	Cat6 lan cable, U/UTP 4pair Ethernet cable
Product type	Twisted pair cable
Product Brand	Aipu or OEM
Product Number	APWT-6UP-01
Conductor
Conductor Type	Solid bare copper
Shield	U/UTP
Conductor Diameter	23AWG/0.55mm±0.005mm
Conductor number	8
Pairs	4 pairs
Rip cord	Yes
Drain Wire	None
Insulation
Insulation Material	HDPE
Insulation Diameter	1.02±0.05mm
Insulation Color	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Filler	None
Shielded
Individual Shielded/material	None
Outer Shielded/Material	None
Jacket
Material	PVC, LSZH,
Overall Diameter, nominal	6.3±0.3mm
Flame Test	CM, CMR, CMX
Tension short term(N)	110
Tension long term(N)	20
Bending Radius	8D

Electrical Characteristics
Individual Conductor Resistance ,maximum	9.5Ω/100m
DC resistance Unbalance, maximum	2.5%
Dielectric, DC,1min	1Kv/1min
Capacity Max	5.6nF/100m
Nominal Velocity of Propagation(NVP)	69%
Operating Frequency, maximum	100MHz

Nominal Transmission Characteristic
Frequency	Return loss	Attenuation	NEXT	ACR
(MHz)	(dB)	(dB/100m)	(dB)	(dB)
0.772	19.4	1.8	76.0	74.0
1	20.0	2.0	74.4	72.0
4	23.0	3.8	65.6	61.0
8	24.5	5.3	60.9	55.0
10	25.0	6.0	59.3	53.0
16	25.0	7.6	56.3	48.9
20	25.0	8.6	54.8	46.0
25	24.3	9.5	53.3	44.0
31.25	23.6	10.7	51.9	41.0
62.5	21.5	15.5	47.4	32.0
100	20.1	19.8	44.3	24.6
200	18.0	29.1	39.7	10.8
250	17.3	32.8	38.2	5.5
Frequency	PSNEXT	ELFEXT	PSELFEXT	Delay
(MHz)	(dB)	(dB/100m)	(dB/100m)	(ns/100m)
0.772	74.0	70.0	67.0	575.0
1	72.3	67.8	64.8	570.0
4	63.3	55.8	52.9	552.0
8	58.3	49.7	46.7	547.0
10	57.3	47.8	44.8	545.0
16	54.2	43.7	40.7	543.0
20	52.8	41.9	38.8	542.0
25	51.3	39.8	36.8	541.0
31.25	49.9	37.9	34.9	540.0
62.5	45.4	32.0	28.8	539.0
100	42.3	27.3	24.7	538.0
200	37.8	21.8	18.8	536.6
250	36.3	19.8	16.7	536.3

Company Profile
Shanghai Aipu Waton Electronic Industries Co.,Ltd. is a high-tech enterprise, who provides full solutions for Extra Low Voltage Copper Wires and Cables, Optic Fiber Cable, Structured Cabling System. Products include but not limited to Cat5e Cables, Cat6 Cables, Cat6a Cables, Cat3 Cables, Multi-pair LZSH cables, Elevator cable, FTTH Bow-type, Single mode and multimode Fiber Optic Cable, Patch Panel, Patch Cord, Module or Keystone Jack, Face Plate, Network Cabinets.
Shanghai Aipu Electronic wire & cable system Co.,Ltd., was founded in 1992. Through years of development, Aipu Waton has become a comprehensive high-tech enterprise integrated with manufacture, research & development, sales and service, which achieves management capital over 2000 Million RMB, factory area 80000m2, employees about 2000(including R&D staff more than 100). Our market and service network cover almost all large and medium-sized cities in China.
Being the leading enterprise in the industry, awarded as the vice-director unit of China Security and Protection Industry Association, Aipu Waton is committed to creating international famous brand as our responsibility. We keep expanding the production capability and renovating technology and improving service, management and company culture so as to provide high performance-price ratio products to all of our customers.
Aipu Waton has maintained excellent and long-term relationship with thousands of customers and makes full efforts to achieve mutual development with them.
Aipu Waton, your reliable partner.
FAQ
1.Q: What' s your MOQ?
A: For Aipu brand cables in stock MOQ is 305m/1000ft, if for customized items, the MOQ are 100ctns.
2. Q: How to get a sample?
A: Choose the style you want from our website, provide the address for us to quote the express fee. If the freight fee could be accepted, after received the payment, we will send out within 7 working days for the stock product. If for the customized product, it will take about 5-15 days. It would be glad and more convenient for both of us if you have an Express collect account.
3. Q: Are you a manufacturer or a trading company?
A: We are a structured cabling and ELV wire & cable manufacturer with 30 years production experience.
4. Q: Can you accept customize or design for us?
A: Yes, all of our products could export as our own brand or customize as customer requirement.
5. Q: Is it possible to get a free sample?
A: Yes, the small samples are free, and shipping cost have to be paid by your esteemed company.
6. Q: If I want to purchase, how to pay?
A: Usually, we do T/T in 30% deposit before production, 70% balance against copy of B/L, or LC. Other payment terms are negotiable depending on customer's request.
7. Q: What is your warranty period?
A: We provide 25 years warranty for the cabling products.
