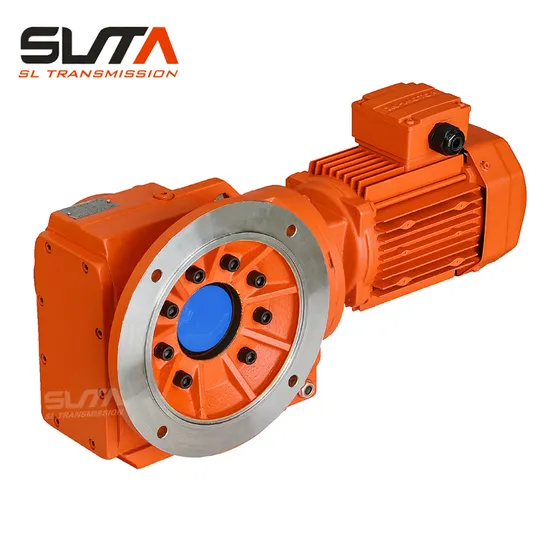

High Efficiency Spline Shaft Speed Reducer Helical Bevel Gearbox Right Angle Gearmotor

Product Description

High Efficiency Spline shaft Speed reducer Helical Bevel Gearbox Right Angle Gearmotor
We are one of the leading manufacturers of gearmotors in China,specialized in transmission industry for more than 30 years.
It is senior member of China Speed Reducer Industry Association and China Committee of Gear. Our products have been reputed by our customers for long.
Our company was located coastal economic area Wenzhou, Zhejiang province. Since established in1988,we have insisted on science and technology innovation, researching and introducingadvanced technology, as well as continuously developing new products to meet the marketequirements.We have ability to develop special gearboxes for our customers' application, OEM and ODM service offered.
Product features 1.KC series helical-bevel gearmotor is the combination transmission structure of helical gears and spiral bevel gears, with large transmission torque and steady running. 2.Little vibration and low noise, with large transmission ratio, the transmission efficiency is much higher than SC series. 3.The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62° after tempering, cementiting, quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5. 4.The products have been mainly used in petrochemical machinery, metallurgy, printing and packaging machinery,ceramic machinery, mine and construction machinery, stage machinery,etc.

Housing material	HT250 high-strength cast iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62 °
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, carburizing, quenching, etc.
Efficiency	94%
Noise (MAX)	60~68dB
Temp. rise (MAX)	40ºC
Temp. rise (Oil)(MAX)	50ºC
Vibration	≤20µm
Backlash	≤20Arcmin
Brand of bearings	China Top brand HRB,LYC,ZWZ or other brands requested, NSK…..
Brand of oil seal	NAK, Taiwan or other brands requested

Model	Shaft Dia.(mm)		Center Height	Output Flange Dia.	Power	Ratio	Permitted Torque	Weight
	Solid	Hollow(H7)	(mm)	(mm)	(kw)		(Nm)	(KGS)
KC37	25k6	30	100h13	160	0.12~2.2	8~102	180	13
KC47	35k6	35	112h13	200	0.18~4	8~126	380	22
KC57	35k6	40	132h13	250	0.25~5.5	8~143	580	29
KC67	40k6	40	140h13	250	0.37~7.5	8~143	680	33
KC77	50k6	50	180h13	300	0.75~11	8~175	1300	45
KC87	60m6	60	212h13	350	1.5~18.5	8~197	2500	81
KC97	70m6	70	265h13	450	2.2~30	8~197	3900	150
KC107	90m6	90	315h13	450	4~45	8~197	6800	230
KC127	100m6	100	375h13	550	7.5~90	8~197	11200	420
KC157	120m6	120	450h13	660	11~110	8~198	11700	680
KC167	160m6	135	500h13	--	15~160	18~186	32000	1050
KC187	190m6	155	600h13	--	18.5~200	18~186	50000	1650
Remark: the weight without oil and motor, shaft and flange input add 10%.

Please contact with us to get General Technical data!
Why choose us? 1.With more than 30 years of experience and advance technology in producing gearmotor, the quality has been recognized by our customers. 2.Short delivery time,large spare parts storage. 3.Strong research and development capabilities. We have ability to develop gearboxes for our customers' special application. 4.Great service!Fast and convenient pre-sales and after-sales service. 5.Good cost performance, providing the most attractive price while ensuring the same quality.

FAQ:
Q1: How can you guarantee the quality?
A: 14 months warranty after shipment. If there is a quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection. Please send us usage details to check the parameters before ordering and operating.
Q2: How we select models and specifications?
A: You can send us the required series code (for example: RC series or in line shaft layout) as well as requirement details, such as motor power, output speed or ratio, service factor or your application,output mounting form...as much data as possible. If you can supply some pictures with nameplate or drawings, it is helpful to select perfectly matched goods to you.
Q3: If we don't find what we want on your website, what should we do?
A: We offer three options:
1, You can send us the pictures, drawings or descriptions details. We will try to design the products basised on our standard models.
2, Our R&D department is professional for OEM/ODM products, please send us drawing/samples, we can do customized design for your bulk purchasing.
3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, wood pellet machine, power trowel,shoes machines and so on.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q5: How about your product delivery time?
A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical gearbox.
For more questions, please contact with us. Welcome to send us inquiry!
