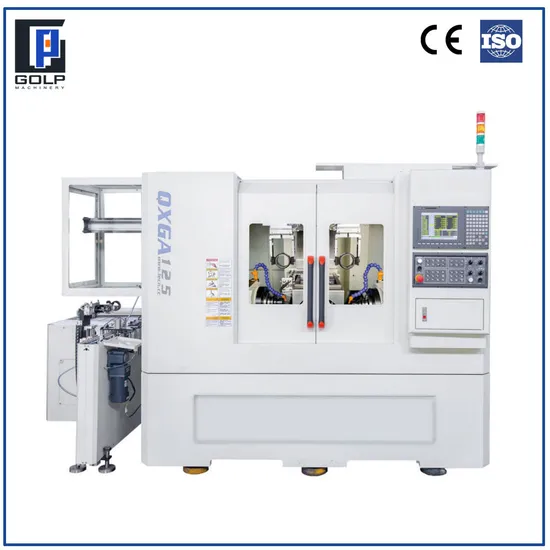

Customized CNC Joint Machine Tool Cage Window Milling / Grinding Machine

Product Description

CN joint machine
CNC cage milling/ grinding machine
milling / grinding cage winddow
Features:
Δ Clamping one time can milling or grinding window cage in order;
Δ Whole casting body, high rigidity rectangular hardened rails, durable;
Δ Miling axis perpendicular adjust structure, can adjust window's upper and lower milling surface'smilling quantity and height tolerance;
Δ Servo-driven workpiece axis can rotate back and forth with highfrequency and precise circumfer-ence equal devision.
Δ Special pneumatic clamps, clamping reliable, accuracy stability;
Δ Can carry with truss or joint robot and automatical line.
automatic product line

ITEM	QXGA125	QMGA125	QMGA135
clamping diameter scope mm	ø40-ø120	ø40-ø70	ø70- ø135
max workpiece height mm	60	50	70
window height scope mm	12-50	12-40	40-50
tool diameter scope mm	ø6-ø12	ø6-ø12	ø6-ø16
weight kg	3000	3500	3600
length x width mm	3200 x 2200	3650 x 2500	3650 x 2500

CV joint internal grinding machine for outer race or cage's inner bore
automatic product line

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.
