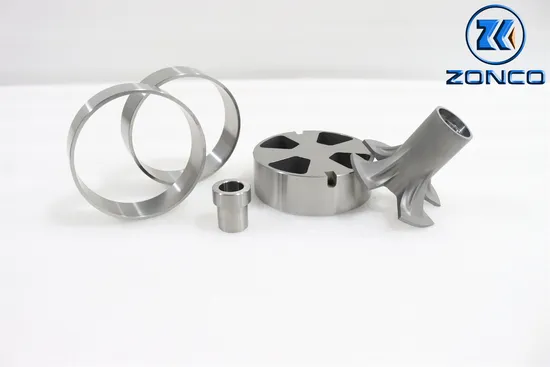

OEM Tungsten Carbide Wear Parts for Mwd/Lwd/Qdt in Oil&Gas Industry

Product Description

OEM tungsten carbide wear parts for Mwd/Lwd/Qdt in Oil&Gas Industry
Introudction:
Zonco has been specialized in manufacturing cemented tungsten carbide parts by offering drawings-based customization as request,we have rich experiences in varied customized tungsten carbide & stainless steel parts which has good performance to abrasion,erosion and corrosion.Welcome to contact us for more details if you have demand for hard alloy parts applied in oil&gas wellhead&downhole,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery,etc.
Description:
Tungsten carbide parts are widely used in drilling fluid diversion,scour,sealing and pulse signal feedback,etc of MWD & LWD,such as the mushroon head(main valve core),flow limitation ring,flow limitation chamber,seat,nozzle,poppet valve,nose cap,ect.Some famouse MWD LWD carbide parts including stator,rotor(plate inlet),liner,retainer,shroud,shroud sleeve,etc,for more details about customizable service,please feel free to contact me
OEM MWD LWD Carbide Parts
International Quality Certification ISO9001 of Cemented Tungsten Carbide
Main Products lines:
1.Radial Thrust Bearing & PDC,TC Bearing
2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)
Customizable Products Display:
Tungsten Carbide Grades,Properties and Application

Grade	WC%	Co/Ni%	Physical and mechanical properties			Grain size μm	Recommended application
			Density g/cm3	TRS N/mm2	Hardness HRA
YG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
YG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
YG06	94	6	14.8-15.1	2500	90.0	1.2	Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
YG06X	94	6	14.8-15.1	2400	91.5	1.0
YG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
YG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for usual wear - resistant parts, molds, general tools, etc
YG10.2	90	10	14.3-14.6	3800	91.8	0.7	Sub-fine tungsten carbide particles, good general performance
YG10X	90	10	14.3-14.6	4000	92.2	0.6	Ultra fine tungsten carbide particles, excellent heat resistance
YG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
YG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
YG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
YG15X	85	15	13.8-14.2	4500	89.0	0.7	Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
YG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
YN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
YN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
YN11	89	11	14.0-14.3	2600	88.0	1.2

Why choose us:
1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.
2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.
What is surface treatment and its advantages?
Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.
Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.
Production Plant/Factory
Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.
The department of raw virgin preparation and compression
The department of HIP sintering
The factory's interior
Technological process of cemented carbide
Corporation Main Gate
Conference/Meeting room
