US$30,000.00-110,000.00
|
1 SET
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
RoHS, ISO 9001
Transport Package
Plywood Case
Production Capacity
400sets/Year
Product Description
Machine Picture
Machine Introduction
General Description
Introducing the PYC series profile machining center, a state-of-the-art facility that seamlessly blends drilling, tapping, and milling into one powerful unit. This long stroke CNC composite machining center is expertly crafted to handle extensive long-profile workpieces with utmost precision.
This high-speed medium and heavy-duty profile processing equipment offers unmatched cost-efficiency. Perfectly suited for projects demanding top-tier precision and rigidity, it stands as the epitome of high-value performance.
Highlights
Spindle Our high-performance and durable spindle systems are engineered to meet and exceed the rigorous demands of modern metal material processing, ensuring exceptional results across diverse applications.
Renowned for their efficiency, flexibility, and robustness, these spindle systems are ideal for universal application, providing versatility and reliability in one package.
The BT/SK/CAT 40 standard taper ensures your tools achieve greater stability and balance, even at soaring high speeds, while offering superior static stiffness for precise machining accuracy.
Machine bed Crafted from casting iron, the machine bed boasts excellent shock absorption and remarkable physical stability, setting a new benchmark for performance.
Undergoes meticulous heat treatment processes to thoroughly eliminate any residual stress, ensuring long-term durability and reliability.
Strategically reinforced with ample plates and three rows of supportive feet to guarantee exceptional rigidity and uncompromising performance.
Machine bed Crafted from casting iron, the machine bed boasts excellent shock absorption and remarkable physical stability, setting a new benchmark for performance.
Undergoes meticulous heat treatment processes to thoroughly eliminate any residual stress, ensuring long-term durability and reliability.
Strategically reinforced with ample plates and three rows of supportive feet to guarantee exceptional rigidity and uncompromising performance.
Column The intensified moving column structure, paired with an expanded contact area between the rail and slide block,
effectively minimizes X-axis deformation,
ensuring that the machine tool maintains superior rigidity and precision for all machining operations.

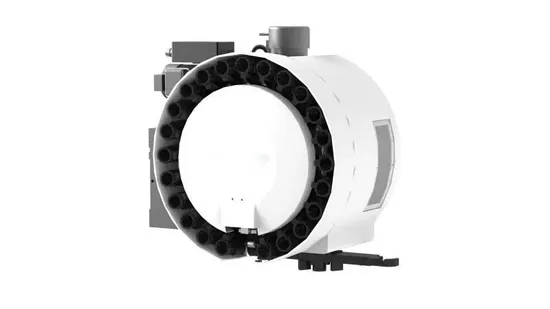

Tool magazine Our tool magazine is designed to move seamlessly with the machining process,
dramatically reducing dry running time during tool changes, and, when combined with the tool-preparation function,
delivers impressive tool change speeds with a tool-to-tool time of only 2 seconds, significantly boosting overall productivity.
Hydraulic and Lubrication System An autonomous oil supply lubrication system services guide rails, rack and pinion, and precision ball screws,
while the automatic lubrication system deploys low-viscosity oil in a timed, precise, fully automated mode,
all controlled by the CNC system, with an advanced monitoring capability to
trigger alarms when low limits are detected, ensuring optimal performance.
Chip Removal System Featuring a large inclined chip removal structure and a high-capacity chip container, this system effectively addresses the challenges of chip removal, providing superb high-flow and efficient cooling performance.
Machine Applications
Our machines are crafted to masterfully handle machining tasks for an array of metal profiles of varying lengths, including aluminum, steel, copper, as well as an assortment of non-metal materials.
Widely acclaimed for its versatility, our machinery is extensively utilized across a multitude of industries. These include the cutting-edge aerospace sector, the robust railway industry, intricate mechanical parts manufacturing, advanced textile machinery components, the strategic military machinery sector, as well as the precision-driven module guide and communication industries.
Machine Features
Experience seamless efficiency with our advanced 3-axis simultaneous control during machining, designed to deliver precision and perfection in every cut.
With an impressive 2500mm long travel on the x-axis, our machine accommodates lengthy workpieces, providing exceptional versatility and capability in processing.
Equipped with a BT40 high-speed spindle, this machine is expertly crafted for processing steel products with unparalleled speed and efficiency.
Our machine boasts remarkable accuracy, rigidity, and stability, ensuring precision and reliability in every operation, elevating your production quality.
Choose from an array of optional enhancements including a rotary table, milling heads, dual heads, grating ruler, and coolant spindle, all designed to elevate processing capacity and optimize performance.
Machine Specifications
Items | Unit | Unit | PYC-CNC2500 | PYC-CNC4500 | PYC-CNC6500 | PYC-CNC8500 |
Travel | X-axis | mm | 2500 | 4500 | 6500 | 8500 |
Y-axis | mm | 580 | 580 | 580 | 580 |
Z-axis | mm | 700 | 700 | 700 | 700 |
Distance from spindle nose to table surface | mm | 130-580 | 130-580 | 130-580 | 130-580 |
Worktable | Size (Length*Width) | mm | 2500×650 | 4510×650 | 6520×650 | 8530×650 |
Max. load | kg/m² | 1500 |
T-slot (Number/Width/Center distance) | mm | 6/18/100 |
Spindle | Type | / | Mechanical |
Power | kW | 11/13 |
Max. speed | rpm | 10000 |
Taper | / | BT/SK/CAT40 (150 outer diameter) |
Feedrates | Rapid on X/Y/Z | m/min | 60/28/28 |
X/Y/Z Cutting Feed Rate | m/min | 15 |
Tool Magazine | Type | / | Disc type |
Capacity | pcs. | 24 |
Tool-to-tool time | sec | 2 |
Dimension | Machine Height | mm | 3100 |
Covering Area | mm | 6900*3100 | 8900*3100 | 10900*3100 | 13400*3100 |
Machine Weight | kg | 12000 | 13500 | 17000 | 19000 |
Machine Configuration
# | Parts Name | Brands | Brand Region | Remarks |
1 | Controller system | FANUC | Japan | OI MF PLUS |
2 | Spindle | ROYLI/HAOZHI/WAYLONG/KENTURN | China/China Taiwan | BT40Φ150 mechanical spindle |
3 | Y&Z axis bearings | NSK/ NACHI | Japan | |
4 | Y&Z axis screw | THK/HIWIN/PMI | Japan/China Taiwan | |
5 | X&Y&Z axis guide rail | THK/HIWIN/PMI | Japan/China Taiwan | |
6 | Tool magazine | AIMACH/POJU/OKADA | China/China Taiwan | |
7 | Pneumatic components | AirTAC /SMC | China Taiwan/Japan | |
8 | Electrical cables | lgus | Germany | |
9 | Electrical component | Schneider | France | |
10 | Reducer | MOTOREDUCER | France | X-axis |
11 | Rack | KH | China Taiwan | X-axis |
Note: When there is insufficient supply, other brands of the components will be used instead, but there will be no difference in quality and grade. |
