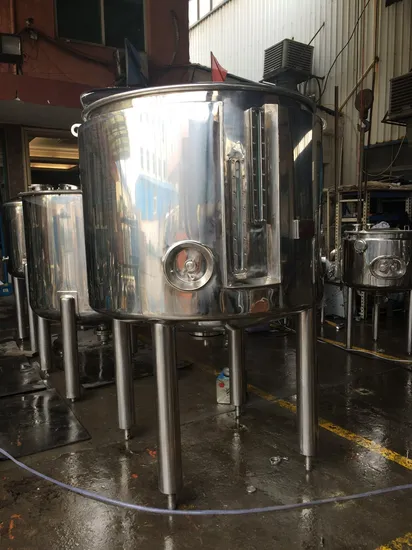

1000L 10hl Fermentation Tank Fermenter 10bbl Conical Glycol Beer Fermentor Vessel

Product Description

Product Description



Feature
• There are varieties of volume from 600L to 20000L. It can be designed and customized according to the customer's requirements.
• Online CIP cleaning, SIP sterilization (121 C/0.1Mpa) Sanitary standard design, user-friend structure, easy to operate Smooth transmission, low noise.
• Reasonable diameter ratio, customized mixing device, energy saving, good stirring and fermentation effect.
• Internal surface mirror polished (roughness Ra is less than or equal to 0.4 um). Holes of the inlet and outlet, mirror, manhole and inner tank welding using stretch flanging process arc transition, smooth and easy to clean no dead angle, ensuringthe reliability and stability in the production process.

Tank Optional Configuration
• Food Fermentation Tank Optional Configuration: sterile air filter, thermometer (digital display type or dial), PH meter, pressure gauge, steam sterilization port, sight glasses, sanitary manhole, in-outlet, CIP universal rotating cleaning ball, liquid level meter and liquid level self-control system (bearing module, non-contact ultrasonic, static pressure transmitting device), etc,or configured according to customer's requirements.

Application
• Mixing, fermentation and enzyme solution in dairy, food, beveragewine, chemical, pharmaceutical, fine chemical industry.

Design Parameter
Design pressure	Tank body (ATM-1.0MPa)
	Jacket (ATM-0.6MPa)
Design temperature	Tank body and Jacket (0ºC~160ºC)
Material
Liner	304, 316L
Jacket	304
Legs	304
Connection
In-outlet	Tri-clamp, Flange
Surface Finish
Finish type	Mechanical / electrolytic polishing, sand blasting, pickling
Polishing precision	Inner surface Ra≤0.4um
	Outside surface Ra≤0.6um

Model		JTRSF-600	JTRSF-1000	JTRSF-2000	JTRSF-3000	JTRSF-4000	JTRSF-5000
Effective volume(L)		600	1000	2000	3000	4000	5000
Tank	Diameter(mm)	Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
	Height(mm)	900	1000	1500	1500	1800	1800
Mxing	Power(kw)	1.1	1.5	2.2	2.2	3	4
	RPM(r/min)	60(Paddle impeller)(Can adjust the design according to the customers usage

Model		JTRSF-6000	JTRSF-8000	JTRSF-10000	JTRSF-12000	JTRSF-15000	JTRSF-20000
Effective volume(L)		6000	8000	10000	12000	15000	20000
Tank	Diameter(mm)	Φ1900	Φ2000	Φ2200	Φ2400	Φ2600	Φ2800
	Height(mm)	2000	2200	2400	2500	2700	3000
Mxing	Power(kw)	4	5.5	7.5	7.5	11	11
	RPM(r/min)	60(Paddle impeller)(Can adjust the design according to the customers usage

The above-mentioned data is the standard, it can customize according to customers requirements.
