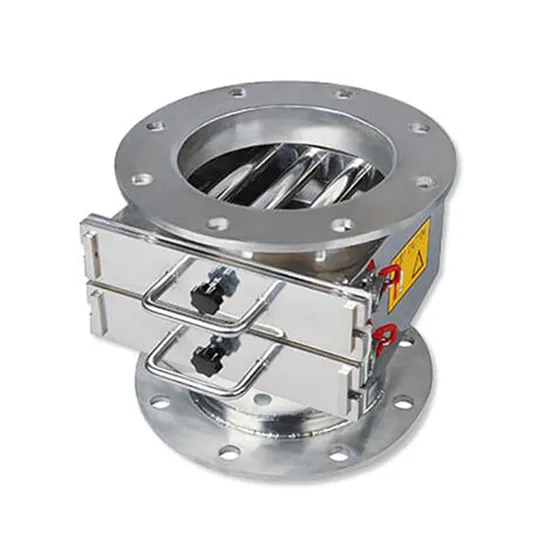

Neodymium Magnet Auto Cleaning Magnetic Drawer Separation Drawer Magnet

Product Description

Drawer Magnet Product Specification

Magnet Grade	N35, N38, N40, N42, N52
Brand	Vibromag
Material	Stainless Steel
Force	11000 GS
Minimum Order Quantity	1 Unit

Product DescriptionWe are a quality conscious company engaged in manufacturing and supplying superior quality heavy duty drawer magnet. These standard drawer magnets are developed and manufactured using the best quality raw materials and by proficient professionals to ensure the complete satisfaction of customers. Our range of drawer magnets offers the best performance to the customers and available at market leading prices to suit the budgets of customers.
Benefits:
Improve product purity
Product processing equipment from
Ferrous metal damage
Introduction:
Drawer-in-housings are designed and developed for ferrous metal separation in a wide variety of dry processing applications. The main body of the housing consists of a row, or most commonly rows, of round magnetic tubes that are assembled into drawers. Each row of magnetic tubes is aligned on alternating centers from the row directly above or below it. As the product flows into the top of the housing, it is forced to cascade in a zigzag pattern from row to row over the magnetic tubes. This cascading effect ensures maximum tramp metal capture since the product comes in direct and repeated contact with a magnet as it travels through the housing operation:
The clean drawer magnet is designed to simplify the cleaning process to encourage frequent and quick removal of collected tramp metal. To initiate cleaning, the operator pulls two handles on the front of the housing, removing the magnetic drawer from the product flow. As the drawer is pulled out, each magnetic tube passes through a seal that wipes the accumulated metal from the tubes. A catch pan is located under the tubes on the front of the housing to collect the metal for analysis or disposal.
Note: Technical data specification subject to change drawer magnets can be made on request of customers they have to simply send us their technical data and application, required for our engineers.
