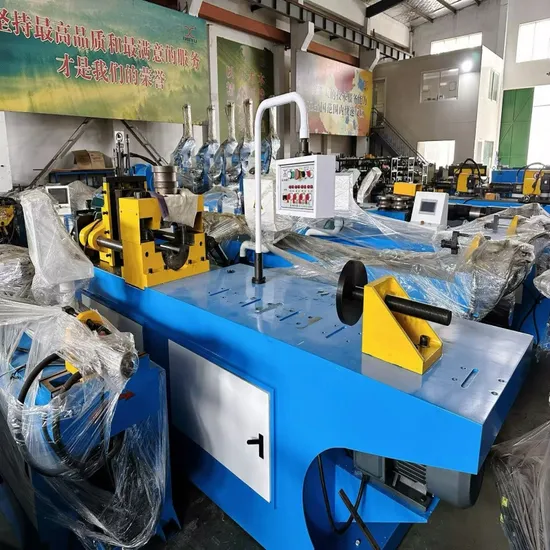

PS60 Nc Steel Pipe End Shrinking Forming Machine

Product Description

PS 60nc pipe shrinking machine
Product Description

Input voltage	380V±10% 50HZ Three-phase power (customizable)
Control circuit	24V
Maximum forming pipe diameter x thickness (Iron pipe)	Φ60*2mm
Maximum working process	110mm
Oil pump	23L
Motor power	5.5kw
Hydraulic pressure	12Mpa
Measurement size of machine	2000*660*1300mm
Weight of machine	1200KG

Feature:
1. The product is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.
2. With double-station arrangement, pipe end forming machine can shrink the tube for two times simultaneously. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.
Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.
3. The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)
4. Single-end clamping or double-end clamping can be carried out according to length of the tube.
5. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.
Standard accessories
1. One pair of mould (shrinkage mould and clamping mould)
2. One set of common tools

Packaging & Shipping

Warehouse
Exhibition

FAQ
1What certificate the machine in your company get?
We've passed the ISO9001 Quality System Approval and CE Certification.

2.Do you have price list for optional configuration?
We have various configurations and so many different specifications, so we can't offer you price list. Please contact our sales engineer if you're interested in certain specific configuration.

3.Does your company accept CIF price?
CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.

4.If your engineer come to our country to fix the machine and do some training, how much will it cost?
The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as v isa fee. Staff cost is 100USD/day/person, normally, it's a two person job. But it will depends for a large equipment or installation and debugging of the whole line.

5.What's the warranty?
Warranty is 12 months which begins from the day when the machine has arrived at the importer's port.

6.What's your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.

5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.

8.What I would do for the machine failure?
If the machine malfunction and users are unable to resolve, please email us for consultation. Our service department will respond within 24 hours.

9.How to define the machine warranty? When did you start timing?
We identify the warranty based on the factory number. Warranty timing counted starting after equipment commissioning and acceptance. If you have any questions, please email us for consultation.

11.How long is the warranty period of machine tool?
We commitment to client machines are one-year warranty. For the purchase of the user, registered as a member in this website, with the factory number of the machine, you can enjoy extended warranty of 3 months. For details, please refer to membership service.
