High Capacity Plastic Recycling Machine Granule Cutting Pelletizer

Product Description

Product Description

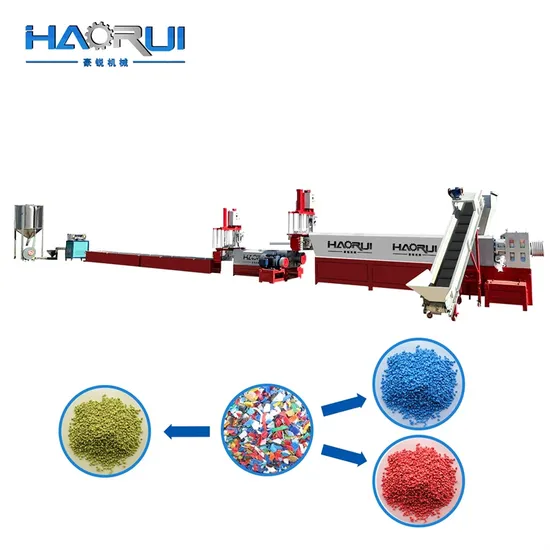

High Capacity Plastic Recycling Machine Granule Cutting Pelletizer
This recycling machine is single screw, double stage pelletizer ,
including feeding conveyor, major extruder,Auxiliary extruder,cooling tank, cutting machine, dryer machine, vibration screening machine, silo
Can be customizer according to customer material, soft film bag or rigid
capacity is 500kg/h
Our Advantages
1.The screw is made of 38CrMoAl alloy, and the surface is nitrided treatment.Durable and long time using.
2.Use the square hard tooth surface gear box has stable transmission and low noise.use a larger model of transmission bearing, which has good sealing performance and is more durable.
3.The screen changer adopts a dual station die head, which can realize the screen changing operation without stopping.
4.The heating of the whole machine adopts the three fire and one zero wiring mode. The heating distribution of the electric heating coil is more uniform, the energy consumption loss is small.
5.The host adopts quantitative feeding, and is equipped with frequency conversion speed regulation to control the feeding amount of the screw through the rotation speed of the feeding screw. In addition, the installation of the feeder can reduce the wear of the screw and improve the service life of the screw.
Detailed Photos

Product Parameters
500kg/h PP PE pelletizer

Item#	Name of Machines	Specifications
1	Conveyor belt	300*3500mm with metal suction machine
2	Major Extruder	1.Reducing casing:315# hardened tooth surface(Bearing thrust increase,Wide gear surface,low noise) 2.Screw barrel:Φ165*4200(38CrMoAl Long time nitriding,Double exhaust) 3.Drine motor:110kw-4 (AC) 4.Heating system:60kw*2 electromagnetic heating Screen changer:300*300 Two operating position
3	Auxiliary Extruder	1.Reducing casing:225# hardened tooth surface(Bearing thrust increase,Wide gear surface,low noise) 2.Screw barrel:Φ165*1600(Long time nitriding) 3.Drine motor:30kw -4 AC 4.Screen changer:300*300 Two operating position
4	Cooling tank	Size:500*4000mm
5	Cutting machine	Hob Cutting machine (with 5.5kw adjusting speed motor)
6	Vibrating sieve	vibrating sieve with two motors
7	Silo Storage	Capacity :1 ton, Material:Stainless steel (2.2kw motor)
8	Electric control system	Major extruder equipped with 110kw inverter,Auxiliary extruder equipped with 30kw inverter,pelletizing control , And equipped with 5-zone constant temperature.

Electric standard:according to customer's working location
Labors: 1~2workers
Machine size:25m*4m
