Hydraulic Cone Crusher Analog of Famous Brand

Product Description

Application
HP series hydraulic cone crusher with high-efficiency and hydraulic pressure was widely used in mining, concrete factory, sandstone making, etc. The machinery's pressure resistance strength is under 350Mpa. And they are widely suitable for primary crushing of many kinds of mining and rock such as many kinds of ores, concrete, fireproof material, bauxite, quartzite, corundum, perlite, ironstone, basalt, etc.
Advantages Unique crushing cavity design increase the production rate and improve the final products shape; It adopts the hydraulic system, which can automatically discharge the uncrushed material. And that makes the operation more convenient. The concave and mantle adopts the highly wear-resistant material and its service life increases by 30% than the traditional spring cone crusher It adopts the oil lubricating station, which makes the operation more stable
Working principles
Hydraulic cone crusher crushes materials by the working surface between the concave and mantle. The movable cone of cone crusher is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are crushed into pieces, when the cone leaves, crushed materials is discharged from the discharge hole.
Specification

Model	Capacity	Discharge opening
/	/	10mm	13mm	16 mm	19 mm	22 mm	25 mm	32 mm	38 mm	45 mm	51 mm
HP200	t/h	90-120	120-150	140-180	150-190	160-200	170-220	190-235	210-250
HP300	t/h	115-140	150-185	180-220	200-240	220-260	230-280	250-320	300-380	350-440
HP400	t/h	140-175	185-230	225-280	255-320	275-345	295-370	325-430	360-490	410-560	465-630
HP500	t/h	175-220	230-290	280-350	320-400	345-430	365-455	405-535	445-605	510-700	580-790
HP800	t/h	260-335	325-425	385-500	435-545	470-600	495-730	545-800	600-950	690-1050	785-1200

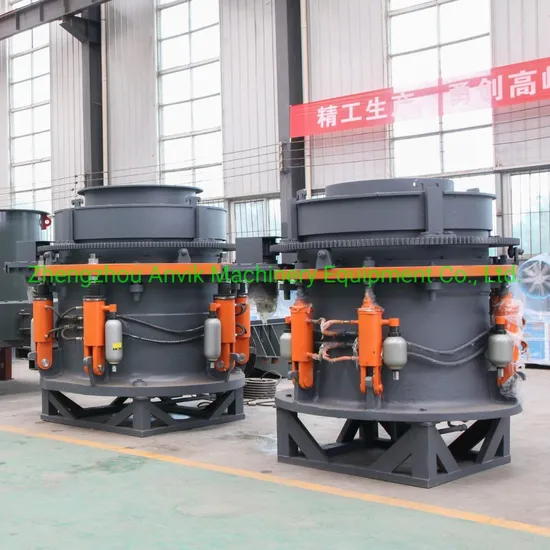

Photo at Our Factory
