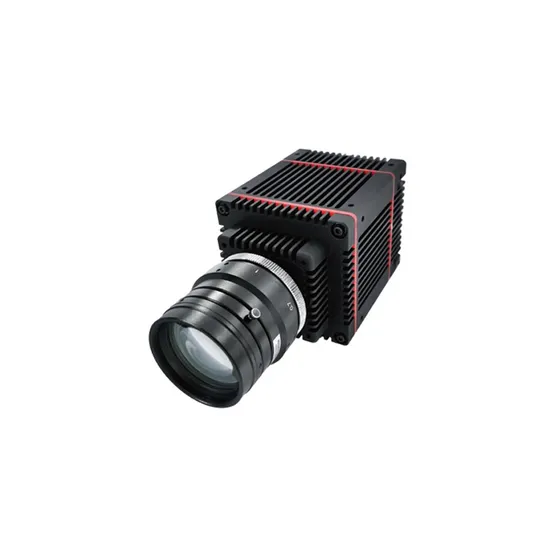

640X512 15um Industrial Flaw Detection Tec Cooling Thermal Swir Camera Sensor
Basic Info.
Model NO.
CQ-STM6C15L2
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
520tvl
Kind
Autofocus Lens
Certification
CE, FCC
Feature
Waterproof / Weatherproof, High Definition, Mini Size
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Resolution
640X512
Frequency Range
0.9um-1.7um
Pixel Size
15um
Cooling Mode
Tec
Digital Output
Cameralink/SDI
Control Interface
RS422
Power Consumption
10W
Transport Package
Carton
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
1000 PCS / Month
Product Description
The SWIR camera applies InGaAs focal plane TEC cooled detector, with 640x512 resolution, 15μm pixel spacing, and 0.9μm-1.7μm response band.With primary/secondary TEC Cooling function, the product further reduces the readout noise.
The complete device adopts integrated and modular design, with high sensitivity, small volume, light weight, low power consumption, multiple interfaces and other characteristics, easy to be integrated by the customers.
The SWIR IR camera can be widely used in astronomical imaging, biomedical treatment, industrial monitoring, machine vision and other applications.
Features:· TEC Cooling plus precise temperature control, with the temperature difference up to 40ºC;
· Non-uniformity correction, filtering and enhancement algorithms;
· Miniaturization, low power consumption, high frame frequency;
| Model | CQ-STM6C15L2 |
| Technical indicator | Secondary cooling |
| Prober material | InGaAs Focal plane |
| Resolution | 640x512 |
| Spectral range | 0.9μm-1.7μm |
| Pitch | 15μm |
| Quantum efficiency | >70% |
| Cooling mode | TEC |
| Cooling temp. | -40ºC |
| Operating temperature | -40ºC~+70ºC |
| Input voltage | DC 12V / DC24V |
| Power consumption | ≤10W@25ºC |
| Digital output | CameraLink / SDI |
| Analog output | PAL |
| External trigger | RS422 / LVDS / LVTTL |
| Control interface | RS422 |
