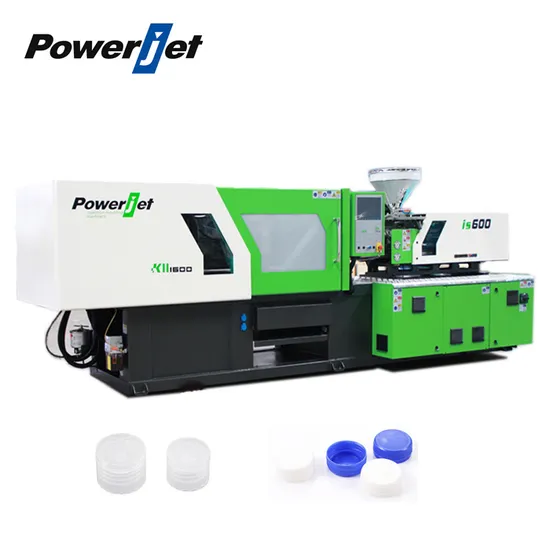

400ton Injection Molding Machine for Plastic Disposable Caps Drink Bottle Cap Making

Product Description

HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc. Machine Details
Center- Press Toggle System
--Improve stability in molding
--Minimize platen's damage
--Higher speed and stable platen's movement
Center press toggle system designed to apply equal force on mold during clamping and preventing platen's damage. New design of the clamping structure, ensures the rigid mold platen enhancement increasing more than 20%. Anti-tilt side design of the foot ensures the opening and closing of smooth high-speed. European ejector design, enhances the adaptability of the mold.
Injection System
---Precision, Stability, Good Plasticization---
Improved injection mechanism,

Efficient driving technology,
Fully reduce injection resistance,
Improve speed and accuracy,
Ensure plasticizing quality,
Color mixing performance.
PLC
. More reasonable electric circuit layout, improving anti-interference ability and stability; . More powerful software, highscalability; Optimized control system, energy saving and high response.

DESCRIPTION		UNIT	KII288-S7
Clamping Unit	Clamping force	kN	2880
	Opening stroke	mm	550
	Max daylight	mm	1160
	Platen size	mm	905x905
	Space between bars	mm	610x610
	Max mold height	mm	610
	Min mold height	mm	280
	Ejector stroke	mm	150
	Ejector force	kN	77
	Ejector number	pcs	1+12
Injection Unit	Screw diameter	mm	52	60	68
	Scew L/D ratio	L/D	21	21	19
	Injection pressure	MPa	248	186	145
	Shot volume	cm3	595	792	1017
	Shot weight (PS)	g	540	719	924
	Iniecton rate	g/s	227	303	389
	Plasticizing capacity	g/s	38	51	62
	Screw stroke	mm	280
	Screw speed	rpm	236
	Carriage stroke	mm	386
Power Unit	Hydraulic system pressure	MPa	17.5
	Pump motor power	KW	30/53.3
	Heater power	KW	17.22
	Number of temp control zones	PCS	1+4
General	Oil tank capacily	L	400
	Machine weight	T	8.5
	Machine dimensions	m	6.1x1.7x1.9
