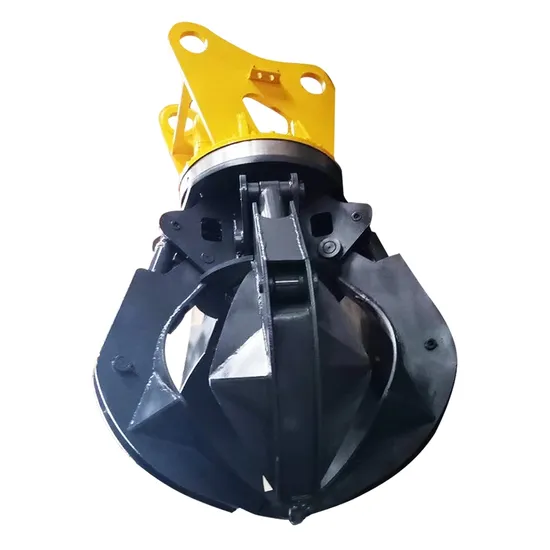

Multi Orange Peel Grapples for 20 Ton Excavator

Product Description

Orange peel grapple, multi peel clamp, is widely used for handling, loading and unloading materials, such as sugarcane, wood, stone, steel slag, grabbing garbage, scrap metal and other special operations. Product features
1, High quality material (Q355B) provide high steel toughness and good abrasive resistance.
2, Multi-purpose and easy for operating.
3, The cylinder is equipped with non-return valve provides safety and reliable. Large cylinder gives strong power.
4, High strength rotate support device. Operator can control the speed for 360 degree clockwise rotation or anti-clockwise rotation.
5, High Standard components and parts.
Wood grapples has a smooth inside claws, which can avoid scratching the wood surface when grabbing.Stone Grapple has teeth or Wear resistant block on its claws to help hold the stone firmly and avoid slipping.

Model	Cyclinder thrust	Oil pressure	Capacity(closed)	Capacity(open)	Suitable excavator	Weight	Close Width	Open Width
	ton	mpa	m³	m³	ton	kg	mm	mm
HP-04	3.14	16-20	0.15	0.61	4-9	400-600	1064	1275
HP-06	5.6	18-23	0.25	1.08	12-16	900-1100	1283	1623
HP-08	9	18-23	0.6	2.24	17-25	1200-1500	1684	1998
HP-10	15.7	20-25	0.9	2.99	26-35	1800-2200	2067	2474

Yantai Hope Precision Machinery Co., Ltd. specializes in the technicalR&D and sales services of hydraulic breakers, wood grabbers, vibration hammers and other excavator attachments. It adopts world-class production lines, high-quality alloy steel, advanced and reasonable oil channel design, rigorous heat treatment technology, first-class professionalR&D team and have more than 10 years of production experience. The products have the feature of super striking power, stable work,economy and durability, and are suitable for various hard working environment. Relying on global resources, it occupies the most cutting-edge information and development advantages, and leads the cutting-edge of excavators.The hydraulic breaker and other equipment produced by the company have successfully passed the ISO9001/2000international quality management system certification and EU-CE certification because of its excellent quality control system, Hope has been selected into the "preferred domestic brand" of the China Council for the Promotion of International Trade.
Q1. Are you a trading company or manufacturer ?we are manufacturerQ2. How many days for the delivery time ?It is up to the quantity, normally it need 1-7 working days after received the deposit.Q3. What kind of payments you accept?Now we accept T/T, L/C or Western Union, other terms also could be negotiated.Q4. Are you able to manufacturing products according to customer's design?Sure, we provide OEM/ODM service.Q5. What's your advantages in the machinery manufacturing industry?Fast delivery time, High quality products, Best customer service, Adopting the latest production technology.Q6: How about the package?A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.Q7: What's the MOQ and payment terms?A: MOQ is 1set
