Plastic Compacting Force Feeder HDPE LDPE Film Pelletizing Machine Production Line/Plant

Product Description

Plastic Compacting Force Feeder HDPE LDPE Film Pelletizing Machine Production Line/Plant
Product Description
Application:
PE, PP film, Silk, Flakes (≤0.5mm), HDPE Bags, etc.
Note, our RC series compactor granulator can be pull strip cutting method,or water ring cutting method for option

Consist of:

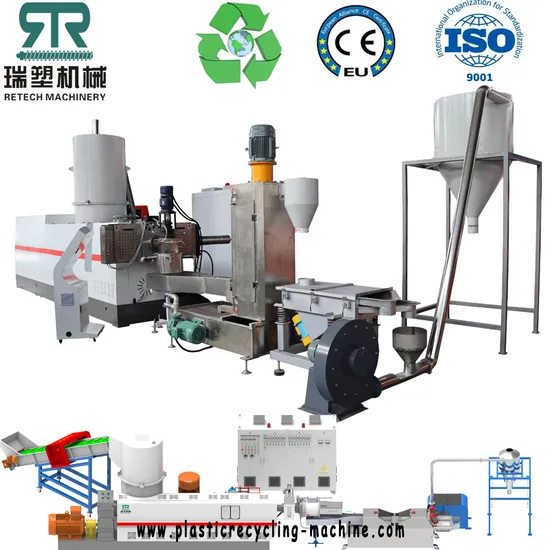

Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet
Product Parameters
For Compactor Film Pelletizer:

Model	Diameter of screw	PE capacity	PP capacity
TCDJ-85	Φ85mm	150-200kg/h	100-150kg/h
TCSJ-85/85	Φ85/85mm	150-200kg/h	100-150kg/h
TCDJ-100	Φ100mm	280-350kg/h	250-300kg/h
TCSJ-100/100	Φ100/100mm	280-350kg/h	250-300kg/h
TCDJ-130	Φ130mm	480-550kg/h	400-500kg/h
TCSJ-130/130	Φ130/130mm	480-550kg/h	400-500kg/h
TCDJ-160	Φ160mm	650-800kg/h	600-750kg/h
TCSJ-160/160	Φ160/160mm	650-800kg/h	600-750kg/h
TCDJ-180	Φ180mm	800-1200kg/h	750-1000kg/h
TCSJ-180/180	Φ180/180mm	800-1200kg/h	750-1000kg/h

For Force Feeder Film Pelletizer:

Model	Diameter of screw	PE capacity	PP capacity
TSDJ-100	Φ100mm	100-150kg/h	90-120kg/h
TSSJ-100/100	Φ100/100mm	100-150kg/h	90-120kg/h
TSDJ-120	Φ120mm	200-250kg/h	180-200kg/h
TSSJ-120/120	Φ120/120mm	200-250kg/h	180-200kg/h
TSDJ-150	Φ150mm	280-350g/h	250-300kg/h
TSSJ-150/150	Φ150/150mm	280-350g/h	250-300kg/h
TSDJ-180	Φ180mm	380-420kg/h	320-360kg/h
TSSJ-180/180	Φ180/180mm	380-420kg/h	320-360kg/h
TSDJ-200	Φ200mm	450-500kg/h	380-400kg/h
TSSJ-200/200	Φ200/200mm	450-500kg/h	380-400kg/h

Certifications
Features
1. Feeding way of plastic pelletizing recycling plant: Special designed force feeder, side feeder and compactor can push the material into the extruder high efficiently. Guarantee getting good capacity of the machine
2. Gear reducer of plastic pelletizing recycling plant: The high torque, hard-surface gear reducer with water cooling circulation system ensures the line running steady, silent, and long life.
3. Barrel and screw of plastic pelletizing recycling plant: The special material (38CrMoA1A & double alloy) and hardness treatment of the screw and barrel make extruder to be good wear resistance.
4. Degassing of plastic pelletizing recycling plant: Special design for the venting can discharge the moisture and waste air efficiently which ensure the finally plastic granules are with smooth surface, no water, no bubble, and good quality.
5. Hydraulic filter of plastic pelletizing recycling plant: Double position hydraulic filter works swift and easy to operate. Copper ring prevents the material leakage.
6. Cutting way of plastic pelletizing recycling plant: Two type cutting way, the noodle type and water ring type makes the customer freely to choose.
7. Special designed die of plastic pelletizing recycling plant: All die holes size are special designed due to the material characters and our rich experience to make machines.
8. Cooling way of plastic pelletizing recycling plant: Most of the materials are cooled by water. Some like PVC are cooled by wind. e with smooth surface, no water, no bubble, and good quality.
9. Cutting way of plastic pelletizing recycling plant: pineapple cutter is for the noodle cutting way, and die face cutter for the water ring cutting way.
10. Package of the final products of plastic pelletizing recycling plant: Final products granules will be blowing into silo, which will be packaged by manual or packaging scale machine
11. Electric parts of plastic pelletizing recycling plant: Siemens,Fuji, ABB, Mitsubishi, TECO all electric parts customized. Packaging & Shipping

Exhibition
Our Advantages
1. Our RC series compactor pelletizing line has pull strip cutting, and water ring cutting method(include vertical water ring cutting and horizontal water ring cutting) for option.
2. The pelletizing machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on our plastic recycling production line
4. The whole PP PE film pelletizing production line with CE certification, ISO9001 certification .
Contacts:
RETECH Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
plasticmachine.en.made-in-china.com
