Anti theft Non contact ultrasonic level sensor / level meter for oil water fuel diesel level Taijia Tech

Product Description

Product Description
Anti theft Non contact ultrasonic level sensor / level meter for oil water fuel diesel level Taijia Tech
Description of Water Level Sensor
UTG21-PY is convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.
Function of Water Level Sensor
1. For circuit design, high-quality power modules are selected to be as power supply parts and highly stable and reliably imported devices are used as components of the meter. It can fully replace imported foreign meters of the same type.
2. Patent sonic-wave intelligent technology software can make intelligentized echo analysis. It needs neither debugging norother special steps. This technology has functions of dynamic thinking and dynamic analysis.
3. Our sonic-wave intelligent patent technology greatly improves the meter’s precision, and the precision of liquid level is up to 0.3%, which is enough to resist various interference waves.
4. The meter is a non-contact one and does not directly contact liquid, so the fault rate is low. The meter can be installed in Several different ways, and the user can make meter calibration according to the Manual.
5. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.

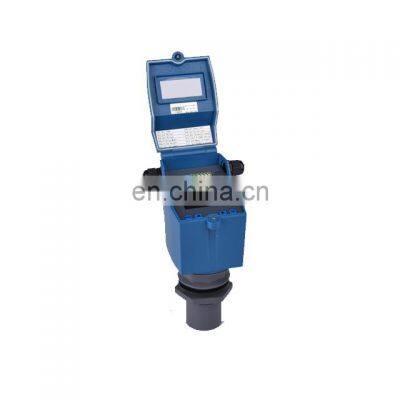

water level sensor level transmitter
Specification of Water Level Sensor

Model Number	UTG21-PY Ultrasonic level transmitter
Range	0~15m
Blind area	0.25m~0.5m
Ranging accuracy	0.3% (Standard condition)
Ranging resolution	1mm
Pressure	Less than four atmospheric pressure
Display	With LCD to display liquid levels
Analog output	4~20mA
Digital output	RS485, Agreement Modbus or customization agreement (four-wire)
Power supply	DC24V or AC220V
Protection grade	IP65
Installation	Nut or flange

l
water level sensor level transmitter

water level sensor level transmitter
