CNC Steel Plate Punching Drilling Marking Machine FINCM CNC Hydraulic 1200KN Punching Hydraulic Hole Punching Machine

Product Description

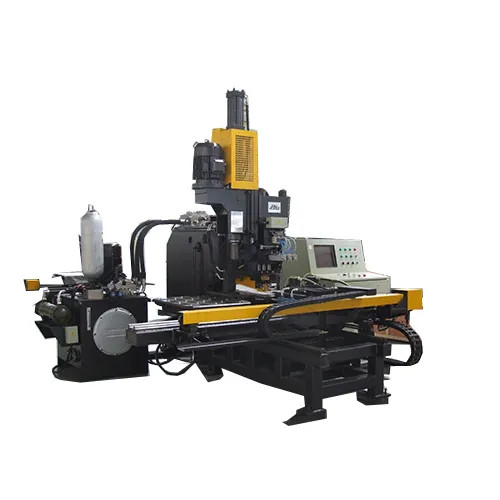

PP123 FINCM Automatic CNC Hydraulic Punching Machine For Plate Product Description

CNC hydraulic flat punching machine is mainly used in steel structure, electric power and automobile industries
The punching of the plate can be carried out after the workpiece is clamped once, so as to ensure the position accuracy of the hole.
High efficiency and automation, especially suitable for multi variety processing.

Product Parameters

Workpiece size	Thickness	5-25mm
	Max. size of workpiece	1500×775mm
Punching capacity	Punch force	1200KN
	Max size diameter	Φ30mm
Punching diameter × thickness	For Q235 steel σ≤420MPa	Φ30×25mm
	For Q420 steel σ≤680MPa	Φ25.6×20mm
Capacity of marking	Marking force	1200KN
	Character size	14×10mm
	Quantity of characters per unit	16
	Quantity of CNC axes	2
	Stroke of X axis---speed	0-18m/min
	Stroke of Y axis---speed	0-18m/min
Motor power	Motor power of oil pump	22KW
	AC servo motor power of X axis	2KW
	AC servo motor power of Y axis	2KW
Hydraulic system	Highest pressure of high-lift pump	24MPa
	Work-pressure of high-lift pump	20MPa
	Work-pressure of low-lift pump	5.5MPa
	Volume of oil tank	320L
	Cooling type	Water Cooling
Pneumatic system	Work pressure	Max. 0.6MPa
		Min. 0.5MPa
Electric parameters	Type	3 Phase Electricity
	Normal Pressure	380V
	Normal Frequency	60Hz
	Total power	26KW
	Overall dimensions (L×W×H)	3600×2800×1870mm
	Net weight of the machine	About 7500kg

List of the Key Outsourced Components:

No.	Name	Quantity	Country
	AC Servo Motor	Delta	Taiwan China
	PLC	Delta
	Electromagnetic unloading valve	ATOS	Italy/Taiwan China
	Relief valve	ATOS
	Electromagnetic directional valve	JUSTMARK	Taiwan China
	Bus bar	SMC/CKD	Japan
	air valve	SMC/CKD
	Cylinder	SMC/CKD
	Duplex	Air TAC	Taiwan China
	computer	LENOVO	China
