Advanced Rice Combine Harvester for High-Performance Farming Operations

Product Description

Product Parameters

Model		4LZ-13
Horsepower		Yuchai 260HP
Drive type		4WD
Dimension(L*W*H)(mm)		9450*5800*3850
Weight(kg)		12500
Cutting width (mm)		5400-6100
Production efficiency	Productivity(hm²/h)	1-2.7
	Fuel consumption(L/hm²)	≤41
	Fuel tank capacity(L)	370
	Working speed (km/h)	1.5-6
	Mini clearance(mm)	430
	Feeding speed(kg/s)	13
Thresher	Grain tank(m³)	10
	Max unload height(mm)	4750
	Threshing pattern	Vertical axial flow rod tooth type
	Grain unloading drum height	4400
	Sorting method	Reciprocating vibrating screen+Centrifugal fan
Chassis	Wheel base(mm)	3305
	F/R wheel space(mm)	F:2600/R:2638
	Tyre model(F/R)	F:28L-26/R:19.5L-24

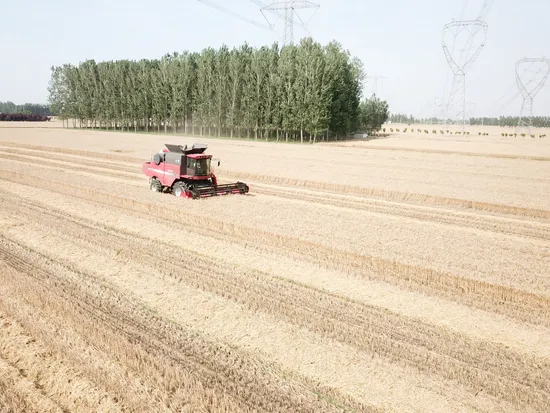

Detailed Photos
Model: 4LZ-13 This self-propelled wheat harvester, equipped with advanced longitudinal axis flow roller separation technology, is primarily designed for harvesting wheat and rice. Versatility is its strength; with simple parts replacements, it can efficiently harvest soybeans, various miscellaneous grains, and even corn kernels (featuring a 6-row corn header with a working width of either 4030mm or 3780mm).
Renowned as the premier grain combine harvester in China, the 4LZ-13 excels in harvesting a diverse array of crops including soybeans, corn kernels, sesame, sunflowers, barley, sorghum, and rice. By merely replacing the header and fine-tuning the operational speed, it adapts seamlessly to different harvesting needs. This exceptional applicability and practicality have cemented its popularity in the global agricultural market.
The bespoke version of our 4LZ-13 has not only penetrated but also thrived in the international market, garnering rave reviews from satisfied customers.
We offer an extensive range of customization services to ensure your grain combine harvester meets your specific needs and preferences.


Product Description
More detailed technical information about 4LZ-13
With an impressive working width ranging between 5.4 to 6.1 meters and a robust feeding rate of 13 kg/s, this harvester is a marvel of efficiency. For instance, on a standard block measuring 200 meters in length, this powerhouse can harvest up to 2.7 hectares of wheat within a single hour. Powered by a Yuchai 260 horsepower engine, our harvester offers four adjustable gears (260, 240, 220, and 160 horsepower). This flexibility allows the operator to select the optimal power output based on the specific crop being harvested, ensuring energy and fuel savings. Equipped with 28L-26 type front wheels and 19.5L-24 type rear wheels, all featuring enlarged and wide high-pattern tires, this harvester demonstrates exceptional adaptability on sandy, muddy, and slippery terrains. Featuring a robust four-wheel drive structure, the front drive boasts a static hydraulic mechanism for seamless and comfortable operations. The 1000 series front axle combined with a heavy-duty four-wheel drive rear axle ensures superior load-bearing capacity and excellent roadability. An elongated fish scale screen significantly increases the cleaning area. Additionally, quick-change concave screen panels facilitate rapid adjustments to the cutting header and threshing components, allowing for the efficient harvesting of wheat, corn, soybeans, sorghum, and more, making this machine a versatile asset. The heavy-duty high-low gearbox roller transmission housing, paired with a continuously variable speed disk, enables adaptive roller speeds from 300 to 1100. American Peer bearings are utilized across all spherical bearings, delivering robust load-bearing capabilities and extended service life. The black one-tooth belt of the transmission offers strong tension and excellent heat dissipation, suitable for prolonged, extensive operations. The cutting header bridge of our high-end large-longitudinal axis flow harvester includes a reverse function, simplifying the process of clearing blockages in the bridge and cutting table. Our grain tank features an automatic hydraulic lift with one-button operation. The driver can conveniently open and close the grain bin cover using an electric control button, ensuring effortless and efficient operation. Company Profile
