High Quality Marie Biscuit Production Line with Stable Function Biscuit Making Machine

Product Description

Company Profile
SINOBAKE GROUP
Guangdong Shunde Huaji Industrial Co., Ltd.(SINOBAKE) is a professional manufacturer of biscuits and cookies production line. We have been exporting our machines around the world to more than 100 countries. We operate the production in strict standards to provide reliable and safety products for customers all around the world.
We have employed professional technicians, employees who can provide an excellent service, and the right quality control equipment and personnel to do this job. The result of this being that we have passed the ISO9001: 2000 management system. We invite you to discuss future opportunities with us, and to also take the opportunity yourself of putting to use our quality equipment.

Product Description

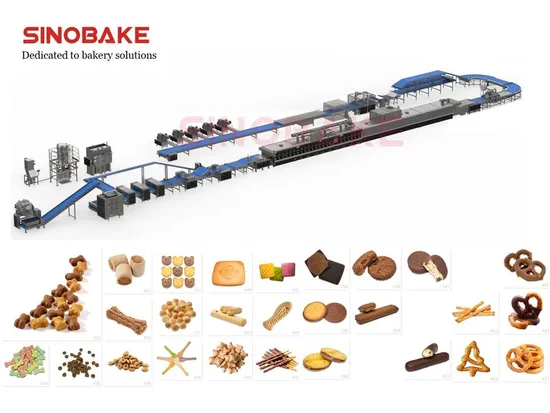

SINOBAKE High Quality Advanced Marie Biscuit Production Line
1. The biscuit production line can be customized according to the customer's workshop or biscuit making technical requirement

2.A complete hard biscuit production line , which can make all kinds of hard biscuits of various shapes, just change the mold
3.We have different heating sources for your operation (Electric, gas, Diesel oil)

4. It is full automatic, advanced technology, easy to operation, high quality,save energy & labor, reasonable price to win customer reply and reputation. Hard Biscuit

The Complete Hard Biscuit production line consists of:
1. Dough Mixer	2. Automatic Dough Tilting and Feeding System
3. Three-roll sheeter for feeding and sheeting dough	4. Laminator for overlapping dough to sheeting on gauge rolls, included flour spreading machine (Special for Soda cracker& Hello Panda biscuit)
5. Guage Roll	6. Rotary Cutter with Dough scrap return system for Hard Biscuit
7. Tunnel Baking Oven	8.Cooling Conveyor and Stacker

Detailed Photos
Biscuit Processing:
Horizontal Dough Mixer (150KG/250KG/350KG/550KG/750KG for option)

Horizontal single blade, Z shape,S shape	304# Stainless steel outer cover and chromed sideboard
Motor and speed reducers by S EW	NSK bearing
Easy to control by PLC with touch screen	Control by PLC, Europe brand control apparatus

Vertical Dough Mixer

Double vertical paddles. Knife type.	Double chain driven
Motor by Siemens and speed reducers by worm gear reducer from famous Chinese brand.	NSK bearing
304# stainless steel cover	Control by PLC, Europe brand control apparatus

Tilting Machine and Feeding system

S EW motor & speed reducer	Chromed sideboard
SUS304 cover	NSK bearing
304# stainless steel cover	Control by PLC, Europe brand control apparatus

Laminator

Number of lamination layers: 8-12 layers	Cut-off method: electric, the cut-off position is tracked by an electric eye
The side board is made of Q235 carbon steel, and the thickness after processing is 28mm	The surface is plated with hard chrome, the hardness is HRC58-62
S EW/Siemens for main motor and reducer	Control appliances mainly use French brands
Cylinder uses Korean famous brand YSC	NSK bearing

Three rolls sheeter

The side plate is made of Q235 carbon steel material, and the thickness after processing is 28mm	The surface is plated with hard chrome, the surface hardness is HRC58-62
The conveyor belt uses European imported PU belt with a thickness of 1.3mm	Cylinder is made of Korean famous brand YSC
S EW/Siemens for main motor and reducer	Control appliances mainly use French brands
Bearings use Japanese brand: NSK	The enclosure is made of 1.5mm304 stainless steel

Gauge roll

Surface is treated with special anti-rust and anti-sticking treatment, surface hardness: HRC58-62	The side board is made of Q235 carbon steel, the thickness is 28mm after processing
The surface is plated with hard chrome, and the surface hardness is HRC58-62	S EW/Siemens for main motor and reducer
Cylinder is made of Korean famous brand YSC	The enclosure is made of 1.5mm304 stainless steel
Control appliances mainly use French brands	Bearings use Japanese brand: NSK

Rotary Cutter for Hard Biscuit

The conveyor frame board uses Q235 carbon steel material, the thickness after processing is 15mm	The surface is plated with hard chrome, and the hardness is HRC58-62
The pallet uses 304 stainless steel	Cylinder adopts Korean famous brand YSC
The enclosure uses 1.5mm304 stainless steel material	S EW/Siemens for main motor and reducer
Control appliances mainly use French brands	Bearings use Japanese brand: NSK

Tunnel Oven

Electric Oven	Gas Oven
Diesel Oven	Direct Oven
Indirect Oven	Hybrid Oven

Cooling conveyor and Stacker

Imported PU belt, thickness 1.3mm	The cylinder uses Korean famous brand YSC
All stainless steel for conveying racks and pallets	S EW/Siemens for motor and reducer
Control appliances mainly use French brands	Bearings use Japanese brand: NSK
Adopt no sanitary dead angle structure design, safe and sanitary	Install safety protection devices such as emergency stop switches

FAQ
1.Q:Are you manufacturer?
A: We are a leading manufacturer of bakery equipment in China, with more than 25 years of experience. We are good at customizing biscuit production lines and cookie production lines according to customer needs
2.Q: Why choose us?A:--- We are China leading Biscuit and cookie machinery supplier.
--- Best quality
--- Best after-sales service
--- Advance technology
--- Save energy and resonable price
4.Q:How much biscuits can your production line make?A:200KG-5000KG.The specific situation depends on your plant area, biscuit recipe and other factors5.Q: How can we make sure about the machine quality after we make the order? A:Before placing an order, we can show you our company and machine through pictures, video or live broadcast to confirm. We also welcome you to visit our company in person, our company is only one hour away from Guangzhou Airport by car.
