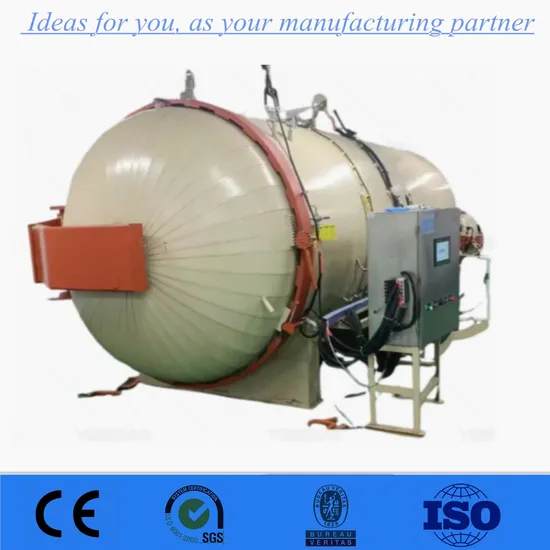

Z-Electric Heating Autoclave for Rubber Vulcanization / Vulcanizing Tank / Rubber Vulcanizing Autoclave

Product Description

Product Description

Rubber Machine Vulcanizing Autoclave For Rubber Products
Product Parameters

All of our products can be customized according to customers' demands.Welcome to place an order.

Brand Name	Evertech
Design temperature (ºC)	180C
Design pressure (MPA)	0.85MPA
Inside diameter	900mm
Effective length	5200mm
Material	Q345R
thickness	10mm
Heat ways	Steam Directly
Open door ways	Manual quickly open door
Sealing ways	sealing gasket with service life1-2years
Control ways	HM1+PLC intelligent control
Safety ways	sealing gasket,manual safety interlock
Alarm ways	over pressure automatic alarm ,automatic discharge pressure
Temperature degree	±l-2ºC
Pressure degree	<±0.01mpa
Rail symbols	8#

Main Features 1.The door opening:The manual quick opening method,all operation steps can be completed easily by one person.The design is safe,fast,easy to operate,and efficient.It can be opened and closed normally during power outage.
2.Sealing Method:The sealing gasket is automatically inflated and sealed by compressed air during operation,the tank door will not leak out.When the door is opened,the air and the pressure in the sealing groove will be released,and the gasket can be back to the flange sealing groove automatically.Convenient and versatile,easy to maintain,sealing effect is obviously better than other methods.
3.The safety lock: 1)The automatic pressure interlocks When the pressure inside the tank reaches 0.01mpa,the floating chain automatically floats and lock the tank door,that can prevent the safety hazards caused by the workers' misoperation. 2)The manual interlocks The manual interlock must be opened when the door opened,otherwise the tank door can not be turned and the the tank door can not be opened, that solves the safety hazards caused by the misoperation of the worker. 3)The safety chain of sealing gasket As long as there is pressure in the sealing groove,the sealing gasket will firmly hold the flange.Only removing the pressure completely,the door can be opened.
Product Advantage 1. The vulcanization autoclave produced by our company is automatically controlled by temperature, pressure and time, which is 20% more energy efficient than the vulcanization tank products under the same specifications of other manufacturers.
2. All the vulcanized tanks are made of Q345R plates for pressure vessels, which fully guarantee the safety and stability of the products.
3. Our company continuously carries out innovations in vulcanization tanks based on years of production experience and user feedback.
4, special high temperature and high pressure integrated fan, to ensure uniform temperature inside the tank without dead angle, thus ensuring product quality and stability.
5. The special stainless steel electric heating tube assembly is a new type of thermal insulation and anti-oxidation material, which has fast heating and long service life.
6. The temperature inside the vulcanization autoclave is fast, the temperature is uniform, and the pressure is constant. The whole process is automated, and there is a clear tone after the work is completed.
7. The vulcanization autoclave adopts external insulation to ensure the internal temperature difference is about +3, which saves 30% energy consumption compared with the ordinary tank.
8. Vulcanization autoclave sealing method The company adopts inflatable silicone rubber sealing ring, which is better than ordinary one and has a longer service life.
9. This equipment belongs to the category of non-standard pressure vessels. Heating parameters, working medium, working pressure, working temperature, external dimensions and many other parameters support private ordering.
Insulation process of the autoclave
1. Drilling holes used in the following steps in the tank in advance.
2.Put steel rings welded on the tank. The rings are used to fix the mineral wool
3. Use mineral wool, the material of which is aluminium silicate, to wrap around the tank body for preservation.
4.Use insulation board to be welded around the tank. It is finished.
Certifications
Our Service
1.Check all the carbon steel/ stainless steel assembly unit material, ensure the Product from our Company quality leadership. One by one check all the original materials of main part when in manufacture(main check the content of indicators Ni, S, C, P, Cr), can get the checking end within 15-20mins, the material used in fabrication of pressure vessels parts serial no. To put in storage, unqualified parts are all returned to the factory. Refine covered 100% spare parts.
2.Quick door opening chain lock device Use the quality cylinder as special protection components, at the same time to use the optoelectronic switch, mechanical interlock three layers lock system, ensure the safety of the door opening and close.
3.Level of the protection for the control system and cable is 2P65. Use the industrial computer human-machine interface control, can optional the paper or without paper recorder.
4.Whole cover the the insulation for the autoclave, saving energy and reducethe consumption.
Images Exhibition
Why Choose Us
-Qingdao Evertech Industry Co., Ltd.Which is established in 2004.we are specializing in producing rubber machines,and we had a great feedback from our customers.
-Our company can produce products of various non-standard specifications according to customer's requirement.
-Superior quality:we have obtained ISO9001,CE,SGS certification,we can guarantee the quality of the machines.
-Delivery time:If customers need Conventional models products,Usually we can ship products to customers within 30 days.if your needed products we have not in stock,usually we can ship to you within 60 days.
-After-sales service:whenever our customers have question,after we received your question,we will give you feedback within 24 hours.we can provide installation,comssioning and start-up etc service for customers if you need.
-Price:We are manufacturer,cooperate with us can help you save much money.Some customers do not know manufacturer,they buy products from trading company will need more money,For new customers,We have a preferential policy.
Our autoclave take about 25% in China domestic market of rubber cure autoclave, Exporting machine reach to America, British, India, Egypt, Russia, Thailand, Korea, Japan, Indonesia, Vietnam, Malaysia etc.

Welcome to place an order.
