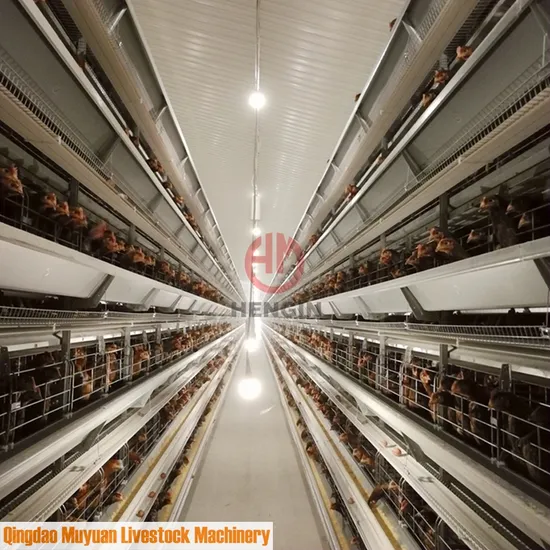

Chicken Layer Cage Livestock Machinery for Ghana Poultry Farm

Product Description

Factory Introduction
1. Our factory was founded in 2002 and has more than 800 employees,covers the 100,000 square meters,is a professional manufacturer of poultry farming equipments including
"H"frame layer cage system,broiler cage system,duck-production cage system, ,egg-duck cage system ,layer rearing cage system,layer breeder parents cage system,feed silo,bulk feed transporting tank and feed machinery etc.
Products Introduction
1. Products Size

products name	H type chickken layer cage	Model	9LDC4288
Material	hot-galvanized wire	Tiers	4 Tiers
one unit size	1200mm×1560mm×2740mm (L×W×H)	unit capacity	128/144 birds
one cell size	600mm×600mm×445mm (L×W×H)	cell capacity	8/9 birds per cell
life span	20 years	living space/bird	450/400 cm²

2.products advanage
1).The distance between each legs is 1206mm, the tier height is 590mm, and the width (including feeding troughs) 1560mm.
Such cages have larger bearing capacity and the more breeding space, C shape leg is formed of hot dip galvanized sheet is easy to clean.
2).cage bottom mesh adopt Belgium Bekaert galvanized aluminum wire, the advantages of this wire is high intensity, good elasticity ,it can effectively alleviate the chicken fatigue.
Compared to hot-dip ,it's not only greatly enhance the arntirust effect, but also improve the cage surface smooth, to avoid the hurt of chicken scratch.
3). Sliding door with lock is convenient to open and close. thus no layers can run away, and feed can not be thrown out of trough when eating.
4). The cage bottom adopt Belgium Bekaert galvanized aluminum wire,, which advantage is high intensity, good elasticity , the surface is so smooth to reduce the egg breakage.
5). cage bottom angle is 7°,the reasonable rolling angle is designed to reduce the rate of egg breakage.
6).The square drinking pipes are installed on the longitudinal central axis of each tier of cage in order to save space, supplying water to layers of both sides. layers in both sides can touch two nipple drinkers.
There is a V-shaped trough placed below the drinking pipe to prevent drinking water from dropping onto manure belt.
7).The feeding system adopt feed trolleys. The reliable driving feeding system rely on the strong cage frame and the strengthened guide rail, each trolley is equiped with two groups of guide wheels .
Smooth rail and feed trough make guide wheels run smoothly without noise, and ensure the feed to be distributed evenly.
Our Service
1.Our professional team can design and produce the most suitable equipment for our customers.
2. For after-sale service, we have professional installation team which provides installation service to our customers all over the world. And anytime you will find us on WhatsApp for 24 hours on line.
3.We can supply and share Chinese chicken raising experience to our customers. Equipment techinal training and farming guiding to our customers.
Our Project
Our Exhibition
We have been regarding technical innovation as the effective power of development,and continuously absorbing the advanced technology and experience to improve our capability of research and development and manufacture special products according to different requirement of customers.
We carry on the tenet of "honest based,value creating"in our daily business to provide cost efficient products and services for customers.
