ISO 5636 ISO 9237 Textile Laboratory Non-Woven Fabric Bursting Burst Test Tester

Product Description

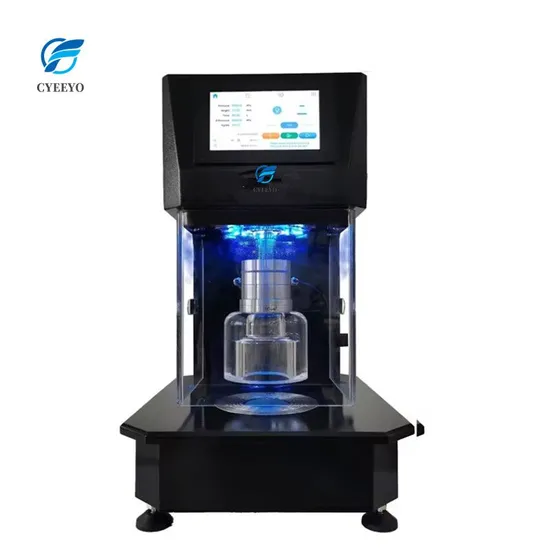

ISO 5636 ISO 9237 Textile Laboratory Non-Woven Fabric Bursting Burst Test Tester

Product Description


Used for testing the expanded force and expanded degree of fabrics, non-woven fabrics, leather,ect. When these materials are under force in all directions at the same time(elastic diaphragm method).
standard
GB/T 7742 ISO 13938.1 FZ/T 60019 FZ/T 01030 ASTM D3786 BS 4768
WOOLMARK TM 29 WSP 30.1JIS L 1018.6.17
Feature
1,adpot hydraumatic method apply to new international standard multi test grip can change
2,touchscreen,easy to operate
3,pneumatic clamp sample
4,test cover is High transparent organic glass,LED light inside,easy to see test
5,auto inductino burst system
6,max textened strength reach 75mm
7,AC servo drive,low running noise ,debugging range wide,wide application
8,adopt high speed AD and processor,sample frequency,high test accuracy
9,four test method
10,save and print function,support online operation
Parameter
1,test range full range1%-100%

No.	-2	-10
range	2.00Mpa	10.00Mpa
Min division value	0.001Mpa	0.003Mpa

2,The elastic diaphragm thickness:≤2mm
3,test area:7.3 cm² dia30.5mm,10 cm² dia35.7mm,50 cm² dia79.8mm,100 cm²dia112.8mm(optional)
4,max textened strength:75±0.02mm
5,rate of pressurization:20-600ml/min
6,test method:constant speed burst,constant pressure,constant expansion ratio,timing
7,test units:kpa,kgf/ cm2,mmHg,lb/in2 free transform
8,output:printout,display output,support online
9,power:AC20V 50Hz 200W
10,dimension:550×450×700mm
11,weight:125Kg
