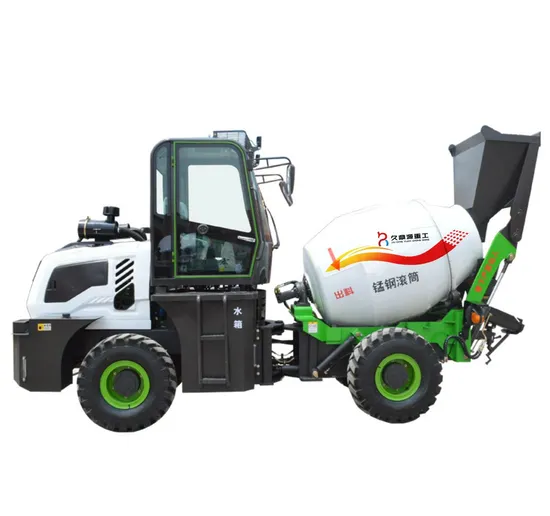

1 to 6 Cubic Meters Diesel Portable Concrete Mixer Mobile Automatic Loading Concrete Mixer Pump Truck Jdy-10

1 to 6 Cubic Meters Diesel Portable Concrete Mixer Mobile Automatic Loading Concrete Mixer Pump Truck Jdy-10

US$12,200.00
1-9 Pieces
US$12,100.00
10+ Pieces

Basic Info.

Model NO.
10
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
25m²/h
Condition
New
Color
White
Trademark
shanding
Origin
China
HS Code
8705400000
Production Capacity
4000set/Year

Product Description

1 cubic meter diesel portable concrete mixer Mobile automatic loading concrete mixer pump truck JDY-10
Product parameters
Specificatons Unit Parameter
Equipment model JDY-10
Actual stirring capacity m3 1.2
Rotary drum capacity m3 1.4
Degree of bias ° 16
Rotational speed r/min 0-14
Direction of rotation Feed:clockwise putput:counter clockwixe
Mixing drum blade Two sets of spiral blades and four sets of auxiliary blades
Slump of concrete mm 70-260
Hydraulic Power Transmission System
Pump model CBGV-4025
Hydraulic motor model BMSS-250
Reducer ratio 1:10
Water supply
Tank capacity/water supply form L 540/automatic timing water supply mechanism with automatic timing
The main performance paprameters of the chassis and the main performance parameters of the engine
Engine type/displacement L CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model Straight injection type four stroke water cooled supercharged diesel engine
Rated power kw/r/min 55KW/2400 78KW/2400
Max torque N.m/r/min 255/1500-1800 380/1500-1800
Max running speed km/h 24
Min steering radius mm 5000
Climbing capacity % 26
Tire 23.5/70-16
Driving way 4×4
Weight kg 4580
Maximum load capacity kg 2800
Whole machinery weight kg 7380
Overall size(L*W*H) mm 6100*1850*3000
