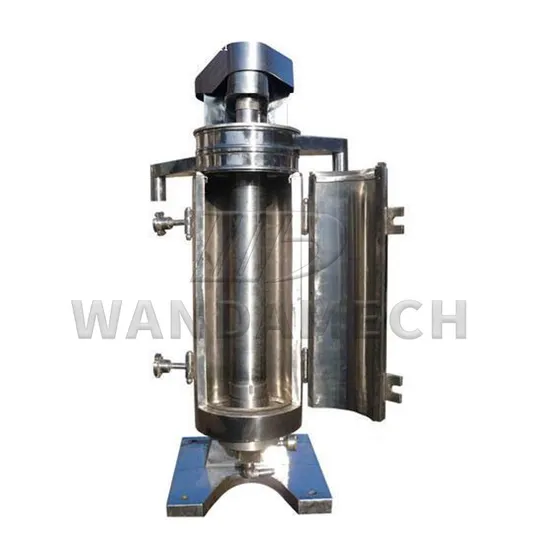

GF125 Tubular Milk Cream Centrifuge Separator Machine with Different Specifications and Large Capacity

Product Description

GF125 Tubular Milk Cream Centrifuge Separator Machine with Different Specifications and Large Capacity Product Description
DESCRIPTION: Tubular centrifuge is a kind of fine separation equipment. It is specialized for solid-liquid separation and liquid-liquid-solid separation for small solid particles and similar specific gravity difference. It is the equipment selected by food, dairy, industrial, chemical, agricultural and biological products industries.
We have two different modes of Tubular Centrifuge, one is Two-phase solid-liquid separation, the other is Three-phase solid-liquid-liquid separation, which can be selected according to your material characteristics and separation requirements.
Product Pictures
Big model in scale production
Smallest one for lab use
Working Principle
The tubular centrifuge is composed of sliding bearing assembly, drum assembly, liquid collecting plate assembly, machine head assembly, body, etc. The power of the motor is transmitted to the belt pulley and the main shaft on the machine head through the belt and pressure pulley, so as to drive the drum to rotate around its own axis at high speed, forming a strong centrifugal force field on the inner wall of the drum. The material is injected into the drum through the bottom feed port, and under the strong centrifugal force, the material liquid is forced to move in layers. The light liquid is in the center of the drum, flows to the upper part of the drum, and is recovered through the liquid collecting tray; the heavy solid is thrown on the inner wall of the drum, and is manually discharged after shutdown.
Application Field
GQ Model-Two Phase: Used to separate various suspensions that are difficult to separate. Especially suitable for solid-liquid separation with low concentration, high viscosity, small solid particles, and small solid-liquid gravity difference. For example, clarification of various mixed solutions, coal tar, graphite residue removal, protein, algal zone, pectin extraction; molasses refining; blood separation, paint, dye, resin, rubber solution purification, separation and clarification of plant extracts.
GF Model-Three Phase: Used for separation of various kinds of emulsions, especially for liquid-liquid separation with little difference in weight between two phases and liquid-liquid-solid separation containing a small amount of impurities. For example, transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification. separation of plasma from animal blood, purification of edible oil, soaking solution, soybean phospholipid concentrate, oil-water separation and sewage treatment, etc.

Product Parameters

Model	GF/Q45	GF/Q75	GF/Q105	GQY125	GQ150
Bowl diameter	45 mm	75 mm	105 mm	125 mm	142mm
Effective height in bowl	280 mm	430 mm	730 mm	735 mm	700 mm
Settling volume in bowl	0.45 L	2 L	5.5 L	7.4 L	10 L
Bowl speed	0-28000 r/min	16770 r/min	16000 r/min	15000 r/min	14000 r/min
Max separation factors	0-19800	20000	15025	15500	15570
Nozzle diameter	2.3 mm	2.3.5 mm	4.6.8.10 mm	6.8.10 mm	8.10.12 mm
Inlet pressure	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa
Throughput	≈100 kg/h	≈500 kg/h	≈1200 kg/h	≈2000 kg/h	≈3000 kg/h
Motor type	Series motor	Y90S-2	Y90S-2	Y90L-2	Y100L-2
Motor power	0.6 kw	1.5kw	2.2 kw	3.0 kw	3.0 kw
Motor speed	0-4500 r/min	2840 r/min	2880 r/min	2880 r/min	2880 r/min
Size	580*650*750mm	800*400*1200 mm	800*700*1400 mm	850*500*1600 mm	800*700*1600 mm
Weight	120Kg	300Kg	400Kg	500Kg	550Kg

Product Packaging
Company Profile
OUR SERVICES: Pre-Service:
1. 24 hours online consult and service;
2. Introduce the product to the customer in detail, answer the question raised by customer carefully;
3. Make different plans for choice according to the needs and requirements of customers;
After-sale Service:
1. Help to install and debug the equipment;
2. Provide 24 hours technical support by e-mail or phone;
3. Keep sufficient replaceable spare parts;
4. Help customers solve any other questions about products or other aspect;
5. Establish long-term and friendly relationship.
Service Commitment:
1. We will provide one-year warranty period to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you. OUR HONORS:
OUR CUSTOMERS:
OUR FACTORY: LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of industrial, chemical and packaging machinery. Our products includes tubular centrifuge, decanter centrifuge, disc centrifuge, plate series centrifuge, filter press machine and so on. Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality machines can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machines. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.
FAQ
1. What data is required to confirm the model?
(1) Materials to be separated (2) Treatment capacity per hour (3) Solid content
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference.
5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site. Or you can post materials to our factory.
6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 15 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site or guide by video conference
