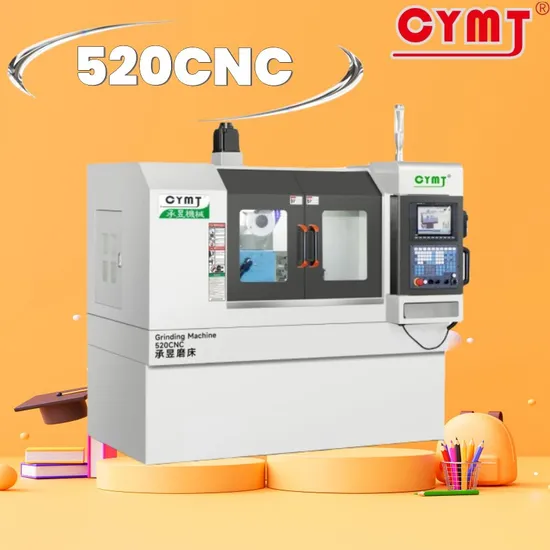

Advanced 520CNC Precision Grinding Machine for Superior Metal Finishing

Product Description

Product Description

CYMT CNC Profile Grinding Machines Punching Bar Grinding Machines
CYMT- CNC Simplifies operating procedures
and improves the control and performance of CNC grinding machines.
Easy to learn, easy to master

	parameter		520CNC	730CNC
Travel	Table size (x*y)	mm	200×450	300×650
	X axis travel	mm	450	650
	Y axis travel	mm	200	300
	Max center of wheel to table	mm	400	400
	Maximum load	kg	100	200
Table	Table T cell specification	mm×N	12×3	12×5
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.0001	0.0001
	Single feed		0.0001~10	0.0001~10
	Fast moving speed	mm/min	0~5000	0~5000
Z axis	Minimum feed	mm	0.0001	0.0001
	Fast moving speed	mm/min	0~5000	0~5000
grinding	grinding wheel size max	mm	Φ180×Φ31.75×20	Φ180×Φ31.75×20
	grinding wheel speed	R.P.M	0~4500	0~4500
motor	spindle motor	W	3700	5500
	the Z axis motor	W	1700	1700
	the Y axis motor	W	750	1100
	the X axis motor	W	750	1100
	cooling motor	W	90	90
	Roller dresser motor (optional)	W	750	750
	Fourth axis motor	W	750	1100
Size	height of machine	m	1.8*1.8*1.9	2.2*2.0*2.0
	floor space	m	2.1*2.3*2.1	2.5*2.5*2.2
	weight(about)	kg	≈1600	≈2800

general picture	Maximum clamping diameter	mm	25	45
	Maximum perforation diameter of indexing head	mm	25	45
	Positioning and Repeat Positioning Accuracy≤	mm	0.003	0.003
	Transverse machining length (standard installation)	mm	150	300
	Vertical processing length (standard installation)	mm	60	160

Controller Functions and Features
CYMT-CNC Control System
Cheng Yu CYMT-CNC controller has many features and functions, equipped with powerful computing power, enhanced HMI function, so that users do not have to write programs, do not need to use the UG programming, you can complete the large and complex machining programs and complex grinding. It can be stopped in the middle of the process in order to change the processing parameters, and then continue processing will not start from the beginning, but from the current slot, so that the operator can quickly improve the processing parameters and enhance the efficiency.
Features
1. No matter what shape is made, it can be realized by a simple program that simply edits a tooth shape, with a graphic display function.
2. You can use the grinding wheel array to repair multiple repetitive shapes on one grinding wheel for cyclic use.
3. Automatic tool setting function, specify the diameter of the punch bar and YZ reference can be processed, the data can be seen at a glance.
4. Handwheel simulation trial processing function, can avoid beginners due to setting error crash.
5. Extra grinding and processing complementary function, processing tolerance is easy to grasp.
6. Scheduled grinding function, can be self-programmed multi-processing.
7. Preset a variety of processing types, direct selection of the type of programming, such as waist circle only need to enter the length and width of the size of the processing can be completed. Easily complete the function of following eccentricity, etc.
8. Grinding wheel memory function, the use of grinding wheel number used grinding wheel without knife can be used.
9. Processing technology can be changed at will, bringing unlimited possibilities for improving efficiency.
