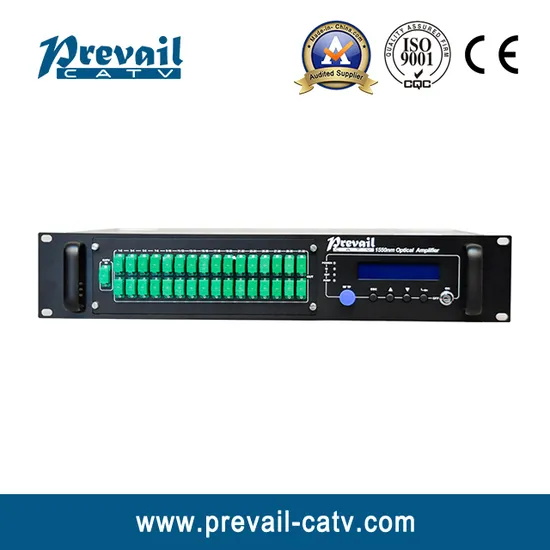

CATV Optical Amplifier 1550nm 4 Outputs High Power EDFA (WE-1550-YZ)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
WE-1550-YZ
Certification
CE
Condition
New
Operating Wideband
1535 - 1565nm
Input Optic Power
-3 - +10dBm
Output Optic Power
13 - 26dBm
Noise Figure
≤ 5.0dB
Return Loss
≥ 45dB
Power of Pump Leak
≤ -30dBm
C/N
≥ 52dB
C/CTB
≥ 63dB
C/Cso
≥ 63dB
Supply Voltage
AC160V - 250V
Transport Package
Bubble or Pearl Wool
Specification
1RU
Trademark
Prevail
Origin
China
Production Capacity
500PCS/Mon
Product Description
CATV Optical Amplifier 1550nm 4 Outputs High Power EDFA (WE-1550-YZ)Performance Characteristics
1. Imported famous low-noise pump laser, which is low pre-distortion, broad channels and high output optical power.
2. Steady imported Erbium-Doped Fiber, high efficiency of power transmission.
3. Advanced Microprocessor with perfect automatic control circuit monitor the various
Operating status of the optical output power and pump laser timely and correctly.
Dependability and stability are better.
4. Front panel blue 160×32 display, shows various main work status parameters.
5.19" 1U high-standard framework type installation
6. Support GB/T 20030-2005HFC Network control management
| Item | Unit | Technique Parameter | Remark | |
| Operating Wideband | Nm | 1535 - 1565 | ||
| Input Optic Power | dBm | -3 - +10 | Input Optical Power 0 - +5dBm | |
| Output Optic Power | dBm | 13 - 25 | ||
| Output Power stability | dBm | ± 0.5 | ||
| Noise Figure | dB | ≤ 5.0 | Output Optical Power 0dBm | |
| Return Loss | Input End | dB | ≥ 45 | |
| Output End | dB | ≥ 45 | ||
| Power of Pump leak | Input End | dBm | ≤ -30 | |
| Output End | dBm | ≤ -30 | ||
| (C/N) | dB | ≥ 51 | ||
| (C/CTB) | dB | ≥ 63 | ||
| (C/CSO) | dB | ≥ 63 | ||
| Connector Type | FC/APC or SC/APC | |||
| Supply Voltage | V | AC160V - 250V (50 Hz) | It can be set with Dual-power hot-backup supply | |
| Operating Temperature | ° C | -5 - +55 | ||
| Max Relative Humidity | % | Max95%No Condensation | ||
| Storage Temperature | ° C | -30 - +70 | ||
| Max Relative Humidity for Storage | % | Max95%No Condensation | ||
| Dimension | mm | 483(W)X340(L)X44(H) | ||
