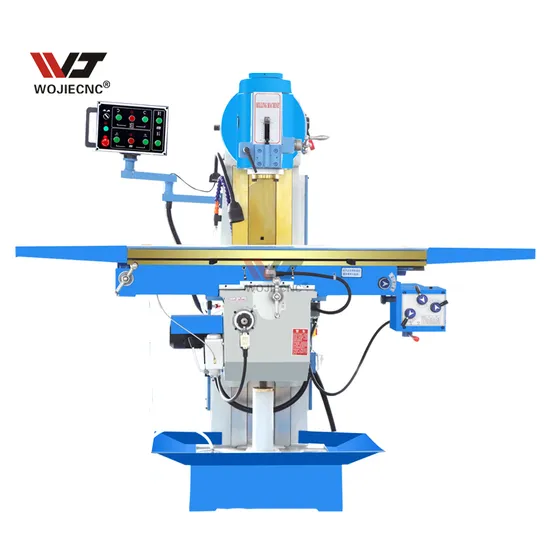

X5036A Manual Conventional Vertical Metal Milling Machine 3 Axis

Product Description

Product Description
Model X5036 Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able toperform milling operations in gears, Cutter, helix groove, cam and tub wheel.Vertical milling head can be swiveled by ±45°, Spindle quill can be moved in vertical.The longitudinal, cross and verticalmovements of the table can both be operated by hand and power, and it can be rapid moved. It has the large working table, a set ofcantilever for electric button and a longitudinal handwheel in front of the table, So the machine can be easy to operate. Workingtable and slide ways adopted quality cast hardened ensure high accuracy.
Product Parameters

SPECIFICATIONS OF VERTICAL KNEE TYPE MILLING MACHINE X5036
Main specification	Units	X5036
Table size	mm	360X1600
T slots (N×W×D)	mm	3X18X80
Table Load-bearing	Kg	550
Longitudinal travel (Manual/Power) X	mm	1020/1000
Cross travel (Manual/Power) Y	mm	300/280
Vertical travel (Manual/Power) Z	mm	410/400
Feed speed steps		18 Steps
Feed speed ranges: Longitudinal X	mm/min	15-750
Cross Y	mm/min	15-750
Vertical Z	mm/min	5.7-280
Rapid feed ranges: Longitudinal X	mm/min	2250
Cross Y	mm/min	2250
Vertical Z	mm/min	844
Distance between table center to vertical guide way	mm	235~535
Arbor diameter	mm	φ32 φ40
Min. distance from spindle nose to table	mm	50-460
Spindle quill travel	mm	75
Distance between vertical guide way to spindle center	mm	380
Max. rotary angle of the vertical milling head		±45°
Spindle hole taper	mm	7:24 50#
Diameter of spindle hole	mm	φ29
Spindle speed steps		18Steps
Spindle speed ranges	r/min	30-1500
Main motor power	kW	7.5
Feed motor power	kW	1.5
Cooling pump power	kW	0.12
Overall size	mm	2307X2067X2096
Packing box size	mm	2240X2070X2250
Net weight	Kg	3370

Detailed Photos
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
