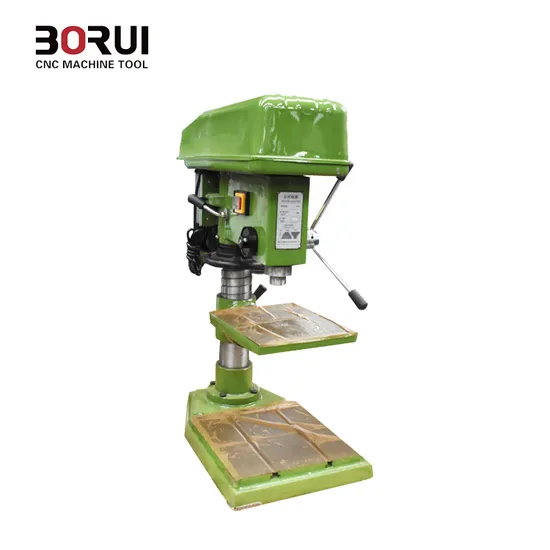

Z4132 Made in China Normal Heavy Bench Machinery Drilling Machine

Product Description

Z4132 Made In China Normal Heavy Bench Machinery Drilling Machine

Product Application
Z3050*16 Hydraulic radial drilling machine is a double column, all hydraulic radial drilling machine. With widely use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.
The main specification:

Specifications	UNITS	Z3050×16
Max. drilling dia	mm	50
Distance from spindle nose to table surface	mm	320-1220
Distance between spindle axis and column surface	mm	350-1600
Spindle travel	mm	315
Spindle Cone		No.5
Spindle speeds range	r.p.m	25-2000
Spindle speed step		16
Spindle feeding range	r.p.m	0.04-3.2
Spindle feeding step	r/min	16
Rocker rotary angle	°	360
Main motor power	kw	4
Movements motor power	Kw	1.5
Weight	Kg	3500
Overall dimensions	mm	2500×1070×2840

Standard Accessories:
Frequency Inverter Main Motor,
Stroke Motor,
Coolant system,
Cube Table ,
Digital Readout of Speeds,
Frequency Inverter,
Work Lamp,
Tools and Toolbox
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
The main performance characteristics:
1 . Counter balanced spindle
2 . Pressurized lubrication system
3 . Hydraulic clamping with push button controls
4 . Hydraulic preselected shifting of feeds and speeds
4 . Hardended and precision ground ways
5 . Hardened and ground gears and shafts
6 . Heavily ribbed cast iron base and arm
Product Dtails
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can
help you to work it out.
8. Always be honest, never lie to customer, and never declare anything
we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
