New Type Dry Method Complete Cement Plant Clinker Calcintaion Kiln

Product Description

New Type Dry Method Complete Cement Plant Clinker Calcintaion Kiln
Production description:
We design and manufacture devices for new type dry method cement making equipment, which capacity from 100t/d to 3000t/d clinker. And we can also assist the client in transacting purchaser`s credit or Chinese government`s credit while exporting.
Main equipments in the cement plant:

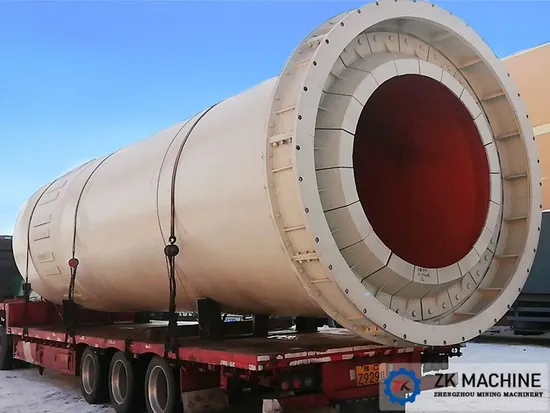

Rotary kiln is the main equipment for cement plant. The rotary kilns produced by our company can be divided into dry process and wet process. They can also be used for chemical industry, metallurgy industry and etc. Throught technical renovations, the rotary kiln sintering system equipment made by our company has adopted high measuring precession plunger pump, variable speed adjusted valve, contact graphite block air seal and other national advanced technologies.
Rotary kiln is the main equipment for sintering cemnet clinker. The rotary kilns produced by our company can be divided into dry process and wet process. They can also be used for chemical industry, metallurgy industry and etc. Throught technical renovations, the rotary kiln sintering system equipment made by our company has adopted high measuring precession plunger pump, variable speed adjusted valve, contact graphite block air seal and other national advanced technologies. In order to raise up automation degree, indurstrial TV has been used at the kiln head for monitoring of kiln, analog fluorescent screen has been used for display of process flow; Infrared scanning system has been adopted for sintering zone to directly reflect the burning conditions on the computer. With the use of these new technologies, it is directly in vision, convienent in operation and reliable in use. Therefore, the rmalcondition can be raised. Compared to been raised 3-5% up, production has been increased 5-10% and heat consumption has been reduced 15% down.
Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. metallurgy chemical kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminium factory and baking chrome ore and chrome powder in the chemical plant.


Parameter of cement kiln:

Model(mm)	Kiln size			Capacity(t/h)	Rotation speed(r/min)	Motor power(kw)	Weight(t)	Remark
	Diameter(m)	Length(m)	Inclination angle(%)
1.4*33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	---
1.6x36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	---
1.8x45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	---
1.9x39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	---
2.0x40	2	40	3	2.5-4	0.23-2.26	37	119.1	---
2.2x45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	---
2.5x40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	---
2.5x50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	---
2.5x54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	---
2.7x42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	---
2.8x44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Suspension preheating kiln
3.0x45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	---
3.0x48	3	48	3.5	25.6-29.3	0.6-3.48	100	237	Outside disassemble kiln
3.0x60	3	60	3.5	12.3-14.1	0.3-2	100	310
3.2x50	3.2	50	4	40.5-42	0.6-3	125	278	Outside disassemble

Production Process of cement plant:
In the cement produciton line,it contains 8 parts:raw materials,raw material preparation,crushing and pre-homogenization,raw material homogenization,pre-heater and calciner,the burning of concrete clinker,grinding and concrete packging.
