Cheap Used Genie Z45 18m Automatic Arm Lift Platform Diesel Battery Knuckle Arm Aerial Work Platform Boom

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!

Genie z62-40 aerial work truck features
Features of the Genie Z62-40 aerial work truck include a full-time active swing axle, four-wheel drive, excellent all-terrain adaptability, dual parallelogram mechanism and full proportional control, a 1.52-meter curved boom that can rotate vertically over 135°, the Gini Rapid Boom Lift System, and an automatic leveling platform.
The Genie Z62-40 aerial lift truck is designed to provide an efficient and safe working environment. Its full-time active swing axle and four-wheel drive system help maintain traction when traveling over rough ground, ensuring excellent all-terrain adaptability. The dual parallelogram mechanism and full proportional control achieve accurate positioning and smooth performance of the crank arm, while the 1.52-meter crank arm can rotate vertically through 135°, providing more precise positioning. In addition, the Gini Rapid Boom Lifting System allows operators to lower and retrieve materials and then return to working height more quickly, resulting in increased productivity. The self-leveling platform, on the other hand, ensures stability during the work process.
Together, these features ensure that the Gini Z62-40 Aerial Worker can operate stably and safely in a variety of work environments, while providing efficient work efficiency, making it the ideal choice for aerial work.




Product Parameters

Specifications
Models	Z-62/40
Measurements	20.87m
Working height max.	18.87m
Platform height max.	12.42m
Horizontal reach max.	12.42m
Below ground reach	2.46m
Up and over clearance max.	7.8m
Platform length (8 ft/6 ft)	0.91m/0.76m
Platform width (8 ft/6 ft)	2.44m/1.83m
Height - stowed (tires)	2.54m
Length - stowed (tires)	7.57m
Width	2.49m
Wheelbase	2.49m
Ground clearance - center (tires)	0.38m

Productivity
Lift capacity max. - unrestricted	227kg
Platform rotation	160°
Jib length	1.52m
Vertical jib rotation	135°
Turntable rotation	360°
Turntable tailswing	zero
Drive speed - stowed (tires)	4.8 km/h
Drive speed - raised (tires)	1.1 km/h
Gradeability - stowed(	45%
Tilt sensor activation (front to back/side to side)	4.5°/ 4.5°
Turning radius - inside/outside (tires, 4WD)	1.30m/ 3.60m
Tires (solid, non-marking)	355/55 D625

Power
Power	Diesel
Auxiliary power unit	12V DC
Hydraulic tank capacity	132 L
Fuel tank capacity	136 L

Weight and Floor Loading
Weight, 2WS	10,052 kg
Weight, 4WS	10,281 kg
Tire contact pressure	483 kPa
Track contact pressure	86 kPa
Occupied floor pressure (tires)	12.71 kPa

Sound and Vibration Levels
Sound Pressure level (ground workstation)	86 dBA
Sound Pressure level (platform workstation)	75 dBA
Vibrations	2.5m/s2

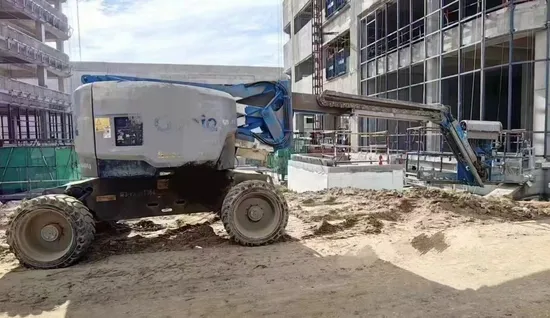

Detailed Photos
