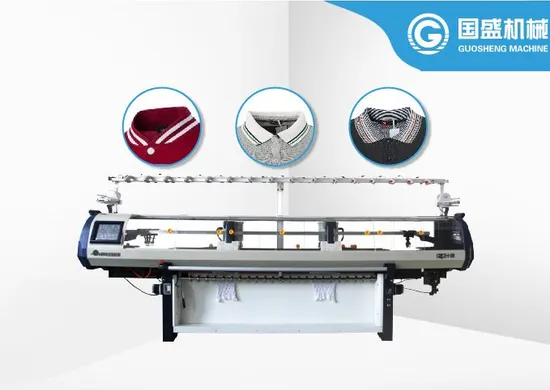

Efficient CNC Flat Knitting Machine for Home Use with New Condition

Product Description

HAVE YOU MET GSJX
WALK WITH KNITTER
PROFESSIONAL IN KNITTING MACHINERY
With 25 years of continuous product upgrades and service improvements, Guosheng stands at the forefront of global smart knitting technology.
As a leading manufacturer of knitting machines, we are committed to enhancing product performance and collaborating with
knitters worldwide, making significant contributions to the standardization of knitting machinery globally. REASONS TO BUY
Experience free machine operation and pattern-designing training immediately upon purchasing our machine.
At Guosheng, mature and attentive service is our guiding principle. Enjoy complimentary training in machine operation and
pattern design to ensure you can maximize the potential of your new knitting machine.

One-year warranty period
Guosheng boasts stable inventory and high-efficiency production capabilities.
We are dedicated to providing a satisfactory purchasing experience, focusing on both quantity and quality. Guosheng maintains a comprehensive inventory
system to meet every customer's needs, with a delivery period set at approximately 10 days. We also accept custom orders, and our assembly line
can enhance work efficiency and significantly reduce delivery times for personalized requirements.
This efficient, high-quality machine is an opportunity you can't miss.
1) Optimized cam structure and motor model significantly boost needle transfer speed.
2) The small carriage returns quickly, enhancing work efficiency.
3) Yarn storage cooperation improves fabric flatness.
4) Needle plate with milled flute design sustains high-efficiency operation post heat treatment.

Product Application
This computerized flat knitting machine features a single carriage system. The economic-type series applies digital
technology to perform transfers, tuck, eyelet stitch, jacquard, apparent shape, hidden shape, and other pattern knitting functions.
The flat knitting machine can knit basic stitches like plain stitch, rib fabric, links and links, interlock stitch, and more.

SPECIFICATIONS FOR FLAT KNITTING MACHINE
Model	GSJX-2-52
Gauge	5G,6G,7G,8G,9G,10G,12G,13G,14G,15G,16G
Knitting Machine	Double System,Single Carriage
Knitting Width	44inch,52inch,60inch,80inch,100inch
Knitting Speed	Max 1.2m/s
Knitting Function	Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping
Stitch Density	Stitch system controlled by stepping motor,32 section stitch selectable,adjustable scope supported by subdivision technology:0-650.
Racking	Controlled by AC servo motor,racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive,AC servo system.
Needle Selection	Controlled by computer,electric magnet needle choose system with high efficiency.
Yarn Carrier	1*8 yarn carriers on each side of 4 guide rails,shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor,32 section levels selection adjustable area:0-100.
Protection System	The machine will automatically alarm if yarn breaking,float yarn,rewind,end of knitting,fail of racking,needle breakage and error programming occur ect.
Control System	1.Adopt LCD screen,input device:USB,system memory 256MB,a great amount of design files can be stored. 2.Monitoring menu,each knid of operating parameter,can be shown,and they can be adjusted at any time when the machine is running. 3.Design system is visual and easy to understand and upgrad. 4.Multi language version ,there are chinese,english etc.
Power	220v,single-phase,have memorizing function at the power-off moment.

Certifications
We handle every product with utmost care, like a cherished child. To ensure safety during transportation, we use vacuum packaging to prevent moisture and rust. Additionally, we offer complete
packaging solutions tailored to your requirements, facilitating loading, unloading, and storage while saving time during
inspection and delivery. Rest assured that your product will arrive safely and on time.
