Factory Direct 8gen Corei5 OPS DDR4 Interactive Device OPS Mini PC

Product Description

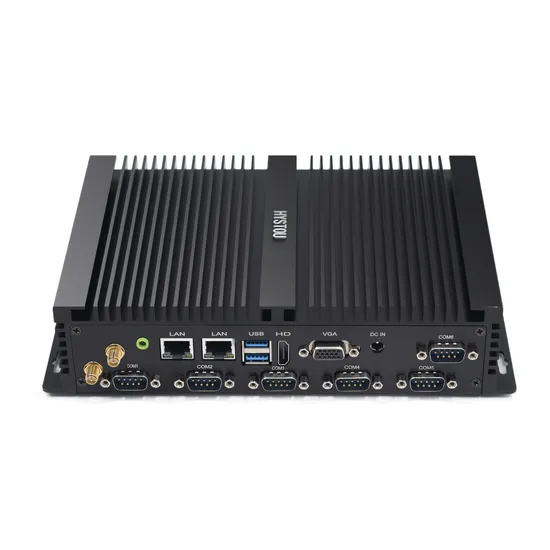

VR Product Picture HYSTOU 6 Com Ports VGA HD-MI Dual Display Fanless Mini Industrial PC The K4 Mini PC is a new series of industrial PCs to be launched by HYSTOU in early 2020, similar to the P04B but smaller in size. This miniature industrial PC supports multiple CPU types. Unique Fanless Design This mini computer featured by noise-free, fanless design and brushed aluminum shell has excellent durability and heat dissipation, say goodbye to the worry of heat dissipation.Pre-installed with Windows 10 Pro (64-bit), the compact size can hide a lot of power. It can easily run Microsoft Office, One Drive, Outlook and other office software, making your work easier. Versatile COM Ports for Seamless Connectivity Our industrial mini PC is equipped with 6*COM ports , facilitating seamless data transfer between your computer and various peripheral devices such as printers, barcode scanners, and digital cameras. In industrial automation control, our mini PC can connect to a wide range of equipment, including PLCs and sensors, for data collection and control. UHD 4K Dual Screen Display Support The mini desktop computer is equipped with Intel UHD Graphics 4400,use 1*HD-MI+1*VGA ports. Ideal for multitasking, home theater, office work, digital security and surveillance, digital signage, media centers, meeting rooms, and more. Large Storage & Expandable Capacity This new design fanless industrial pc supports 2*DDR3L SO-DIMM 204 pin Max 16GB RAM . 1*mSATA slot+1*SATA3.0 Slot for 2.5 inch HDD/SSD.Let you browse the web, chat, watch live video every day, for multitasking, enough to run multiple applications and browser tabs at the same time. Built-in Wifi and Bluetooth + 2.5Gbps LAN This mini PC is equipped with Wifi 4 + Bluetooth 5.2 wireless adapter and 2*2.5Gbps network adapter .WiFi4 has low latency and 600Mbps efficient transfer speed, while Bluetooth 5.2 provides stable and strong connection within effective working distance to quickly identify your peripheral devices. The RJ45 network interface has a bandwidth rate of 2.5Gbps, which is 2.5 times that of traditional Gigabit Ethernet.

Processor
CPU	Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)
TDP	15W
CPU Lithography	14nm
Memory Specifications
Max Memory Size	64GB
Memory Types	2*DDR4 SO-DIMM 260 pin
Memory Channels	Dual Channels
ECC Memory	Don't support
Storage Specification
m.2 SSD	No M.2 slot
SATA	1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA	1*mSATA slot
Graphics
Processor Graphics	Intel UHD Graphics 620
HD-MI	1*HDMI 4096*2034@24Hz(4K)
VGA	1*VGA 1920*1080@60Hz(1080P)
Power Specification
Power Adapter	DC 12V/5A
Adapter Input	AC 110-240V, 50/60HZ
Consumption	48W
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	4*USB 3.0 port,2*USB 2.0 port
Audio	1*3.5mm MIC in & SPK out
Video	HD-MI 3200*2000@60Hz + VGA 1920*1080@60Hz 2 Display Output
Audio Cards	Realtek ALC 897,Realtek ALC 662
Lan Port	2*RJ45 Lan 2.5G Gigabit Ethernet Controller,Intel I225-V ,2*RJ45 Lan Gigabit Ethernet Controller,Intel I211 for i7-4500U
Com Port	6*RS232 Com port/5*RS232 Com port, 1*RS422 Com port or 1*RS485 Com port
Wi-Fi	Inside Wifi & Bluetooth Combo
System	Support Windows 10/11, Linux
Case Material	Full Brushed Aluminum Alloy
Dimension	PC size 240*150*57mm Package size 320*260*80mm
Weight	Net 1.4kg; Gross 2.0kg

Company Introduction About us Hystou Technology Co Limited is a reliable manufacturer and exporter of fanless Mini PC, industrial PC, all in one PC and industrial panel PC. Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market. In order to supply quality products and excellent services, our company has got approvable reports and certificates of CE, FCC, RoHS, SGS, ISO9001 and so on. Our goal is "Innovation First, Quality First, Customer First, Service First". Packing&Shipping Product Packing Normally we use the carton box, 5 or 10pcs per carton 1 x Mini PC 1 x Power adapter(correct power plug based on buyer's country) 1 x WiFi modlue with dual antennas(barebone not include WiFi) 1 x VESA bracket(some model not support) 1 x Sata power cable and data cable.(some model just support one Msata) 1 x Warranty card & user manual FAQ
