Rapier Loom Machine Double Beam Technology Electronic Jacquard Machine

Product Description

· PRODUCT INTRODUCTION--------------------------------------------------------- Type:WMT1408,WMT2816,WMT3072,WMT3072-24,WMT5120,WMT5376,WMT5376-24,WMT6144,WMT6912,WMT8448,WMT10240,WMT12288,WMT13312.WMT14336 Speed: Upto 650RPM Selection Method: Module + drive circuit board + aluminum alloy lifting knife Shedding Form: Conjugate CAM,positive double-lift,fully-open shedding mechanism Shedding Height: The front shedding width range is 45-109mm. Back shedding width range is 72-120mm with easy adjustment. Note: Other specification can be made according to customers' requirement CHARACTERISTICS-------------------------------------------------------------------------------- This high quality electronic jacquard machine is designed specially for heavy duty designs or high speed looms. Driving system is optimized and improved which makes the machine running in stable and low noise to make good use of shedding height. Power consumption will decrease when it runs in heavy duty designs by using module selection. Embedded intelligent control module and touch-screen human-computer interaction interface has better experience. It can meet the requirement of running in high-speed and long term. Customized servo or motor runs in no vertical shaft but synchrodrive with looms. RANGE OF APPLICATION--------------------------------------------------------------------------- Matching with all kinds of overseas and domestic high speed rapier looms, air jet looms, water jet looms and projectile looms. It is suitable for trademark, tie, garment fabric, decorative fabric, shawl, towel, tapestry etc. This electronic jacquard advantage is very outstanding especially for heavy duty designs. TECHNOLOGY PARAMETER

TYPE	Length A (mm)	Width B (mm)	Height C (mm)	Weight (kg)
WMT1408	1700	948	1170	1000
WMT2816	1950	948	1170	1450
WMT3072	1980	948	1170	1550
WMT3072-24	1890	1320	1250	1600
WMT5120	2800	948	1170	1950
WMT5376	2910	946	1030	2200
WMT5376-24	2500	1320	1250	2250
WMT6144	3260	948	1170	2150
WMT6912	2900	1320	1250	2200
WMT8448	3260	1320	1250	2500
WMT10240	2940	1700	1250	3000
WMT12288	3340	1700	1250	3500
WMT13312	3540	1700	1250	3600
WMT14336	3800	1700	1250	3700

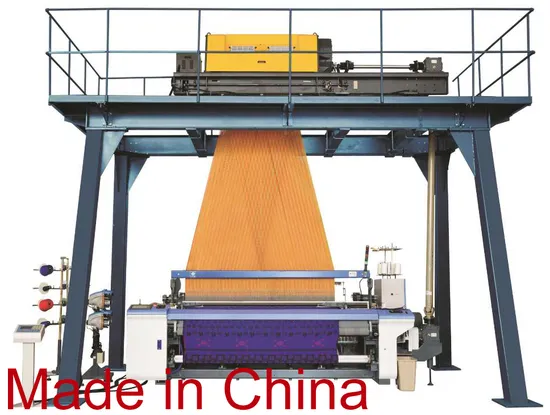

MACHINE'S PHOTO
