High Quality & High Speed Carbon Wire/Rope/PC/Steel Cord/Nail Straight Line Wire Drawing Machine
| US$10,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LZ-560
Type
LZ Straight-Line Metal Drawing Machine
Usage
Wire
Metal Material
Steel
Outlet Diameter
0.5-6.0mm
Max.Inlet Wire Dia.
6.5mm
Block Dia.
560mm
Max. Number of Block
15
Certification
ISO
Condition
New
Certificate
ISO/CE/BV
Transport Package
Naked
Specification
8X2.2X1.7 M
Trademark
CHANGXIN
Origin
Wuxi, China
HS Code
8463300000
Production Capacity
150 Sets/Year
Product Description
HIGH QUALITY & HIGH SPEED STRAIGHT LINE WIRE DRAWING MACHINEMachine frame: Steel welding framework, all covered up dust free, with transparent organic glass panel in front showing movements inside during normal operation.

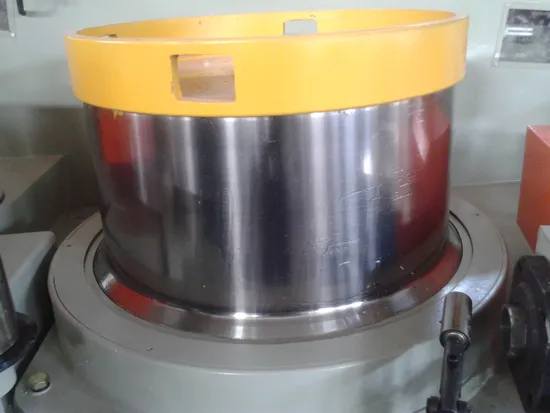

Capstan: round rolling forming by high strength manganese steel plate then via carburizing and quenching.
Surface treatment: layer welding by alloy welding rod and polishing, spray welding by tungsten carbide.
Cooling: Normal pressure water cooling plus high pressure air cooling.
Die box: dry & wet drawing normal die box, rotating die box
Transfer system: Italian brand gearbox plus belt transmission.
Electric cabinet details:
PLC: Siemens
Touch screen: Siemens
Inverter: Yaskawa, ABB, Schneider, Siemens
Circuit breakers and contactors: Schneider
Technical Parameter:
| Model | Block Dia.(mm) | Max. Draw Passes | Max.Inlet Wire Dia. (mm) | Min.Outlet Wire Dia. (mm) | Motor Power (KW) | Max.Outlet Speed(m/s) | Noise Level (dBA) |
| LZ-200 | 200 | ≤15 | 2.2 | 0.25 | 4.0-5.5 | 22 | ≤81 |
| LZ-250 | 250 | ≤15 | 2.6 | 0.4 | 4.0-7.5 | 22 | ≤81 |
| LZ-300 | 300 | ≤15 | 2.8 | 0.5 | 5.5-7.5 | 22 | ≤82 |
| LZ-350 | 350 | ≤15 | 3.5 | 0.6 | 5.5-11 | 22 | ≤82 |
| LZ-400 | 400 | ≤15 | 4.2 | 0.75 | 11-15 | 22 | ≤82 |
| LZ-450 | 450 | ≤15 | 4.5 | 0.8 | 11-22 | 20 | ≤82 |
| LZ-500 | 500 | ≤15 | 5.0 | 1.2 | 15-30 | 20 | ≤82 |
| LZ-560 | 560 | ≤15 | 5.5-6.5 | 1.3 | 22-45 | 20 | ≤82 |
| LZ-600 | 600 | ≤15 | 6.5-7.0 | 1.35 | 30-55 | 20 | ≤82 |
| LZ-650 | 650 | ≤15 | 7.0 | 1.5 | 30-55 | 18 | ≤82 |
| LZ-700 | 700 | ≤15 | 8.0 | 1.8 | 45-75 | 18 | ≤82 |
| LZ-750 | 750 | ≤15 | 8.0 | 2.0 | 45-75 | 16 | ≤82 |
| LZ-800 | 800 | ≤15 | 10 | 2.5 | 55-90 | 16 | ≤82 |
| LZ-900 | 900 | ≤15 | 12 | 3.0 | 75-110 | 16 | ≤82 |
| LZ-1000 | 1000 | ≤15 | 14 | 3.5 | 90-132 | 15 | ≤82 |
| LZ-1200 | 1200 | ≤15 | 16 | 4.0 | 90-132 | 14 | ≤82 |
| LZ-1400 | 1400 | ≤15 | 20 | 5.5 | 90-160 | 10 | ≤82 |
