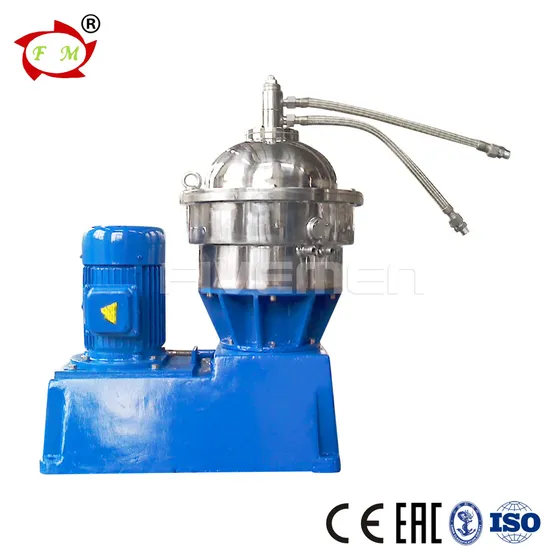

Industrial Horizontal Disc Centrifugal Separator for Cane Juice Clarifier

Product Description

Product introduction:
High-speed centrifuge separator are widely used in a variety of biological processes from cell harvesting and clarifying to separations of chemicals, food, blood and pharmaceuticals. High performance is consistently achieved in continuous, semi-continuous or batch operations. Disk stack centrifuges are high-speed centrifuges for the mechanical separation and clarification of mixtures comprising solids and liquids. These machines can be used in a wide range of applications. Due to their special design, disk stack centrifuges work at a higher rotation speed than other centrifuges such as decanters. As a result, the centrifugal acceleration (g-force) generated by a disk stack centrifuge is significantly more powerful than in decanter centrifuges. Moreover, the disks included provide a large clarifying area. Thus, it is possible to separate ultra fine solid particles from a liquid and to separate liquid mixtures in an efficient way
Product Feature
• Full automation possible with PLC automatic control panel.
• Centrifugal separation requiring no filter media.
• High reliability drive train system backed by delivery of over 1,000 units a year.
• Bowl design with superior separation performance and with good response to discharge loads.
• Pilot valve regulates total/partial discharge of solids.
• Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
• fraction for discharge.
• Vibration-proof design realizes long working life.
• Full automation possible with PLC automatic control panel
Technical paramete

No.	Model	Clarify capacity	Degrease capacity	Drum diameter(mm)	Drum speed	Motor Power	Discharge way	Separator factor	Weight	Size
		(l/h)	(l/h)			(KW)			(kg)	(mm*mm*mm)
1	RPDR230	1200	600-800	230	6930	2.2	Manual	6170	255	850X625X985
2	RPDH270	1800	800-1000	270	7200	4	Automatic	6950	550	865X645X1100
3	RPDH315	3000	1500	315	6500	5.5	Automatic	7000	650	900X600X1150
4	RPDH385	5000	2000	385	6500	7.5	Automatic	7500	750	1100X1050X1250
5	RPDH430	6000	3000	430	6900	11	Automatic	10000	900	1200X950X1400
6	RPDH470	10000	5000	470	6000	18.5	automatic	9500	1100	1250X1000X1550
