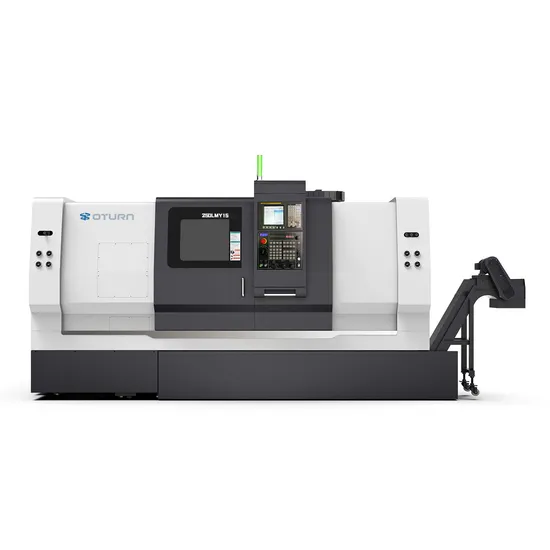

Precision CNC Lathe Single Spindle Turning Center

Product Description

Product Description
Discover the power of precision with our optimized 30-degree inclined bed structure design, offering unparalleled precision, exceptional rigidity, and outstanding cutting stability. Crafted from a single piece of high-strength HT300 cast iron, our lathe bed undergoes finite element analysis to ensure superior mechanical rigidity and stability. Enjoy long-term reliable accuracy, enhanced processing stability, extended tool life, and improved accuracy stability with our stress relief treatment. Our high-strength hard rail structure and screw pre-tension design further enhance rigidity performance.
Experience unmatched accuracy and durability with our hard rail guides and heat-treated, precision-ground ball screws. Each axis features a direct transfer axis structure and a double-anchor pre-relay method to minimize thermal displacement, significantly boosting processing accuracy.
Product Parameters

Name	Unit	250LMY15
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ520
Max.Swing Over Cross Slide	mm	Φ500
Max. processing length	mm	1390
Spindle nose	type	A2-8
Max. Spindle speed	rpm	2500
Hydraulic Cylinder/Chuck	lnch	12″
Spindle bore diameter	mm	Φ87
Bar diameter	mm	Φ75
Spindle motor power	kw	15/18.5
Motor torque 143-236 ;pulley ratio 1:1.5	Nm	215-354
X/Z travel	mm	310/1450/120±60
X/Z Specification of shaft guide	spes	hard rail
X/Z Shaft motor torque	Nm	22
X/Z/Y motor power	kw	3.0/3.0/1.8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z/Y axis moving fast	m/min	20/20/8
Turret type	pcs	BMT65-12/ER32
Power cutter tower motor	KW	7.5
Max. speed of	rpm	6000
The tool biock specifications	mm	25X25
Circular cutter holder specification	mm	Φ50
The adjacent tool change time	sec	0.38
Programmable hydraulic tail seat	/	Hydraulic
The biggest stroke of the tail	mm	1530
Morse Slide way	type	Mohs 5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	mm	4850*2300*2100
Machine Weight	kg	7500
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
To select the ideal model, please share your specifications with us. We can recommend the best model for you, or you can choose the exact model you prefer. Additionally, you can send us your product drawings, and we will find the most suitable machines for your needs.
Q2: What are the main products of your company?
We specialize in a wide range of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Turning and Milling Composite Processing Machines.
Q3: Where is your factory located? How can I visit?
Our five factories are located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcomed to visit us at any time.
Q4: How do you transport the machines?
We offer a variety of transportation solutions, including DDP, CIF, FOB, and FCA.
Q5: What are the payment terms?
The payment terms are T/T, with an initial payment of 30% when placing the order and a 70% balance payment before shipment.
Q6: What is the minimum order quantity (MoQ)?
A: The MoQ is 1 set. Note that some low-cost machines may require an order of more than 1 set.
We want to know:
1. We highly recommend providing the size and material of your workpiece for evaluation. Ideally, send us the workpiece drawing so we can recommend the most suitable model for your needs.
2. If you need CIF pricing, please kindly inform us of the port of destination.
