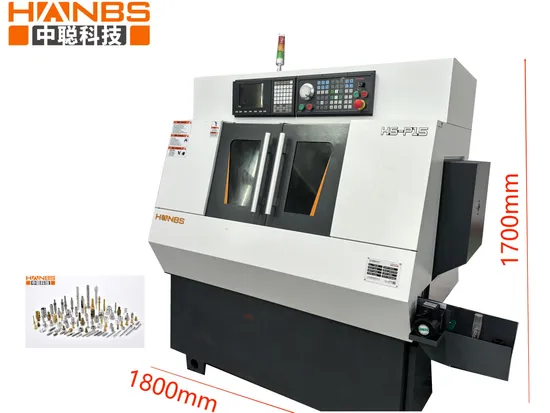

Hanbs Double Spindle CNC Lathe with High Speed Turning HS-P15
| US$23,200.00-23,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HS-P15
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Double-Spindle Processing
Control Method
System
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Other Optional Functions
Depending on Customers Needs
Transport Package
Wood
Specification
1850X1450X1600mm
Trademark
HANBS
Origin
China
Production Capacity
40sets/Month
Packaging & Delivery
Package Size
2200.00cm * 1700.00cm * 2130.00cm
Package Gross Weight
2000.000kg
Product Description
Hanbs Double Spindle CNC Lathe with High Speed Turning HS-P15| Project | ||
Processing references | Maximum machining diameter | 15mm(spindle)12.7mm(back spindle) |
| Maximum machining length 2.5D | 35mm | |
| aximum axial bore diameter | Φ7mm | |
| Maximum axial work wire size | M6 | |
| Maximum spindle speed(short time) | 10000rpm | |
| Maximum back spindle (short time) | 12000rpm | |
| Maximum workpiece removal length | 35mm | |
| Maximum stroke | X1 axis | 285mm |
| Z1 axis | 170mm | |
| X2 axis | 285mm | |
| Z2 axis | 170mm | |
| Tool | Blade size | 310mm |
| Maximum number of tool installations | 8 | |
| Tool (turning tool) | 12X12 | |
| Sleeve | Φ20 | |
| Height from blade holder to spindle center | 45mm | |
| collet | Spindle collet | 18.1x21(M18X1.2)76 |
| Back spindle collet | HA12 | |
| Feeding speed | X1/X2 axis feed velocity | 30m/min |
| Z1/Z2 axis feed velocity | 15m/min | |
| Electric motor | Spindle drive power | 2.5/3.7KW |
| X1,X2,Z1,Z2 power | 0.75KW | |
| For cutting fluid | 0.4KW | |
Others | Spindle center height | 1010mm |
| Barometric flow | 0.7mpa 0.5m³/min | |
| Main circuit breaker capacity | 40A | |
| Input power | 5.0KW | |
| Weight | 2400Kg | |
| Overall dimensions | 1850X1450X1600mm |
1.Screw rod:PMI
2.Guide rail:PMI
3.Bearing:(Japan) NSK / NACHI
4. Servo motor:Taiwan SYNTEC 5.Controller:Taiwan SYNTEC
6. Electrical:Sheider from Germany, Omro from Japan
7. Pneumatic components:Air TAC
8. Cable: German Lenny brand
9.Coupling: Japan Sanmu
F&Q
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. Can you give the favourable price?
A. We have different series machine,but we can recomand you machine according to your products and the quote favourable price for you.
Q4.Can you provide some certificate?
A. We can provide certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is46 mm.Mini processing daimeter is 3mm.And you can see the above picture about the samples.
Q6.How will the machine be transported?
A.We transport machine by sea.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.
