50kg 1000kg 3000L Ss Mini Double Cone Powder Vertical Dual Type Mixer

Product Description

Product Description

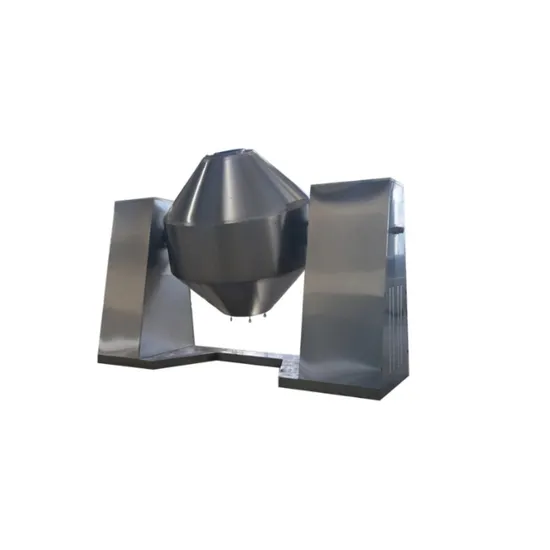

Double Cone Mixer
Through the vacuum conveyor the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually.It's energy saving, easy for operation, the labor density is low, and the working efficiency is high.
Product Parameters

Volume	≤100L
Cylinder speed	3-12rmp/min
Turning height	1750mm
Tank volume	0.2m3
Maximum load	≤50kg
Barrel material	SUS316
Framework outsourcing	SUS304
Motor power	2.5kw
Weight	350kg
Dimension	1750*850*1750mm

Feature 1. All surfaces in direct contact with the drug should be made of 304 stainless steel, and third-party material certification should be provided, mirror
Polished, surface roughness Ra < 0.4µm, the welding seam of the electric welding part is complete, and the surface treatment is consistent with the external appearance and color.Near, there should be no obvious solder joints, special parts of the material should meet the production, process and GMP requirements.
2. The rubber sealing material is made of natural rubber, silicone rubber, and under normal use, it is not easy to damage and does not occur after damage.Loose particles, and should be easy to disassemble and assemble, and to provide third-party material certification.
3. All concave and convex parts on the internal and external surfaces of the equipment adopt arc transition, or adopt chamfer transition to ensure that there is no dead Angle and easy to clean.
4. The outer surface of the equipment is smooth, clean, beautiful, and the transition is chamfered and rounded, and there shall be no obvious dents, haircuts,scratches, bruises and rust. The structure of the equipment is reasonable, the material contact part and the slit interface of the equipment table are properly passed.Good treatment can effectively prevent materials and clean water from entering, and at the same time can eliminate oil pollution and other polluting materials in the equipment,It can ensure that the material and the transmission parts do not pollute each other.
