High Reliability Im18 DC 2 Wires Flushinductive Proximity Switch Sensor

Product Description

Product Description IM series proximity sensor
Features of metal cylindrical proximity sensor
Reverse polarity protection;
Short-circuit protection (M8,M12,M18,M30 DC type);
Long-life & high reliability;
Yellow Led indicates working status of sensor;
Economical and easy to operate;
Alternatives for mini switch and limit switch;
Delay at power-up, guard against false pulse;

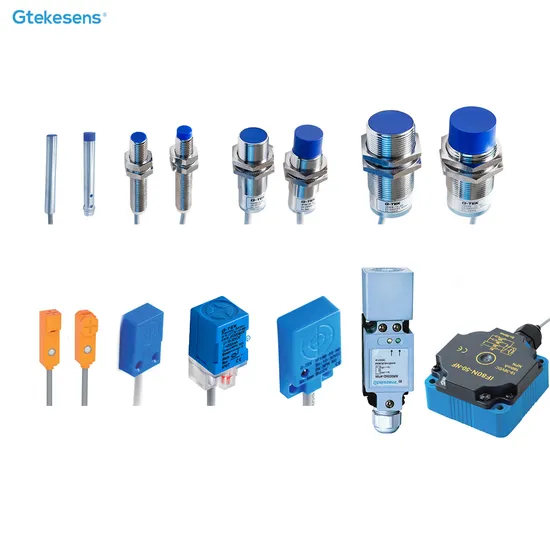

Detailed Photos
Product Parameters

Proximity sensor	IM18B	IM18N
Model	IM18B-05-DO IM18B-05-DC	IM18N-08-DO IM18N-08-DC
Output	Flush		Non-flush
Sensing Distance	5mm±10%		8mm±10%
Hysteresis	Less than 15% of sensing distance
Detecting Object	18mm×18mm×1mm (Fe360 carbon steel)		24mm×24mm×1mm(Fe360 carbon steel)
Supply Voltage	10-30 VDC
Leakage Current	Max.0.8mA
Voltage Drop	Max.2.5V
Switch Frequency	350Hz		200Hz
Temperature Influence	Between -25ºC~70ºC,less than ±10% sensing distance at+20ºC
Control Output	Transistor output , resistive load Max.100mA
Indication Light	Operating indicator (Yellow)
Working Temperature	-25ºC~70ºC(Non-freezing)
Storage Temperature	-30ºC~80ºC(Non-freezing)
Ambient Humidity	35~95%RH
Circuit Protection	Over voltage protection, short-circuit protection, reverse polarity protection
Protection Rating	IP67(IEC)
Cable Standard	Φ5. 2×0.3 mm ²

Product Series	Output Mode	Installation Mode	Product Model	Supply Voltage	Sensing Distance	Housing	Connecting Mode
IM18	DC2 wire	Flush	IM18B-05-DO	10~30V DC	5mm	stainless steel	cable
			IM18B-05-DC
		Non-flush	IM18N-08-DO		8mm
			IM18N-08-DC
IM18	DC3 wire	Flush	IM18B-05-NO	10~30V DC	5mm	stainless steel	cable
			IM18B-05-NC
			IM18B-05-PO IM18B-05-PC
		Non-flush	IM18N-08-NO		8mm
			IM18N-08-NC
			IM18N-08-PO
			IM18N-08-PC
IM18 LONG DISTANCE	DC3 wire	Flush	IM18B-08-NO	10~30V DC	8mm	stainless steel	cable
			IM18B-08-PO
		Non-flush	IM18N-12-NO		12mm
			IM18N-12-PO
IM18	AC2 wire	Flush	IM18B-05-AO	24~240V AC	5mm	stainless steel	cable
			IM18B-05-AC
		Non-flush	IM18N-08-AO		8mm
			IM18N-08-AC

Installation Instructions
Product Application
