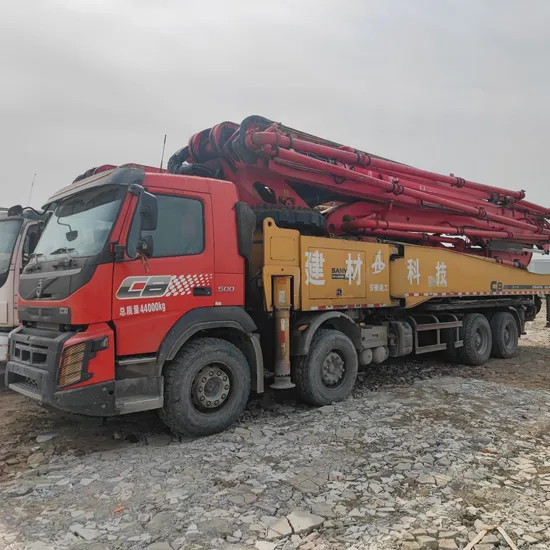

Used Sy 56m Concrete Pump Truck for Concrete Pumping

Product Description

Product Description
In terms of the working parameters of this pump truck, the pumping height is more than 50 meters, and the maximum pumping height is 56m. The theoretical displacement of concrete is 180m ³/h at low pressure and 125m ³/h at high pressure. The theoretical pumping pressure is 8.3Mpa at low pressure and 12Mpa at high pressure. The inner diameter of the conveyor cylinder is 260mm and the stroke is 2100mm.
The overall dimensions of the vehicle are 13980mm or 13860mm long, 2550mm wide, and 4000mm high. The boom system has six arms, the first arm length is 11390mm, and the turning angle is 89 °; the second arm length is 9230mm, and the turning angle is 180 °; the third arm length is 8750mm, and the turning angle is 180 °; the fourth arm length is 11707mm or 11070mm, and the turning angle is 240 °; the fifth arm length is 8080mm, and the turning angle is 210 °; the sixth arm length is 3350mm, and the turning angle is 110 °. The rotating angle of the turntable is 360 °.
The chassis is Volvo, the chassis model is FM500 84R B, and the number of bridges is 4 bridges. The pump truck is suitable for earth and rock engineering, house construction, excavation foundation, pipeline construction, municipal public utilities, ports and waterways, petrochemical and other working conditions. Sy Heavy Industry SYM5446THB 560C-8A pump truck has one-button technology of boom frame, intelligent vibration reduction technology of boom frame, energy saving technology, rotary anti-swing control technology, high wear-resistant vulnerable parts, fault self-diagnosis technology, intelligent boom system and safety protection technology.
In terms of the working parameters of this pump truck, the pumping height is more than 50 meters, and the maximum pumping height is 56m. The theoretical displacement of concrete is 180m ³/h at low pressure and 125m ³/h at high pressure. The theoretical pumping pressure is 8.3Mpa at low pressure and 12Mpa at high pressure. The inner diameter of the conveyor cylinder is 260mm and the stroke is 2100mm.

Specification	Details
Overall Length	13860mm / 13940mm
Overall Width	2550mm
Overall Height	4000mm
Total Weight	46000 kg
