Rubber O Ring Cutting Machine

Product Description

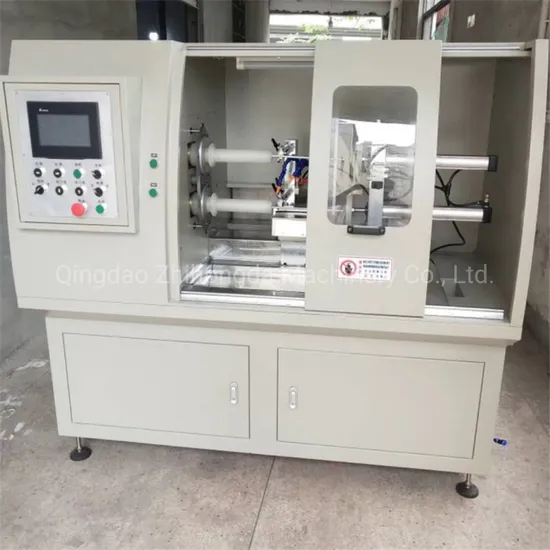

Rubber O Ring Cutting Machine
Product introduction
Name: Rubber O Ring Cutting Machine
Model: Double shaft
Descriptions
Rubber O Ring Cutting Machine is used for cutting all kinds of tubular products (rubber and silicone etc) to gasket, ring. The LCD touch screen PLC controls all cutting parameters, operation is extremely simple. Machine structure is adopted mechanical action, all electrical components, pneumatic components are famous brands.
Technical parameters
Double shaft rubber ring cutting machine:

Cutting frequency	>50pcs/min
Working speed	0~2000r/min
cutting precision	≤±0.05mm
Cutting outside diameter	Φ10mm~Φ120mm
Cutting length	≤200mm or 300mm
Cutting thickness	≤12mm
Compressed air consumption	50L/min
Air pressure	0.5MPa~0.8MPa
vacuum degree of work	≤-0.035MPa
Total power	1.5KW
weight	≈600Kg
dimension(L×W×H)	1600mm×960mm×1580mm

Round tube, rectangular tube, all shaped tube can be cut:
Products Features
1.The Rubber Gasket Cutting Machine adopts the automatic program control measures of material system, reducing the need to replace the jig to complete before unloading process cumbersome.
2.the cutting machine equipped with servo control system, servo motor, frequency converter, PLC control, cutting size is precision and reliable.
3.LCD touch-screen control, all the cutting parameters very clear.and the operation is easy.
FAQ
1.Where is your factory located?
In Qingdao city, China.
2.When was your factory established?
Since 2013
3.What is your main market?
Europe, The North America, South America, Australia, The middle east,
Southeast Asia and etc.
4.How many workers are in your factory?
70 workers.
5.What machines do you have in your factory?
Laser cutting machine, high precision cutting machine, robot hand, welding machine, powder coating line, drilling machine, spray paint machine, edge banding machine, etc.
6.Do you have a QC department?
Yes, we have 3 QC persons
