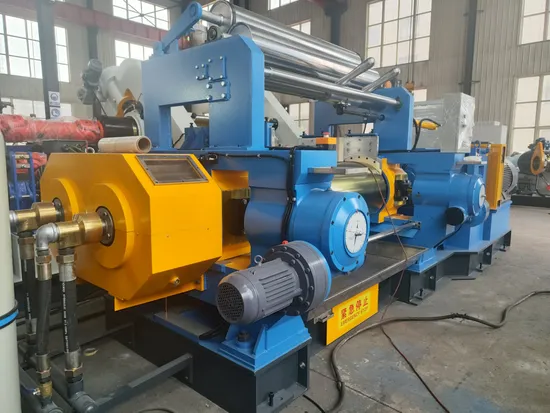

Hot Selling High Quality Rubber Mixing Mill /Two Roll Open Mill/Rubber Mixing Machine with Stock Blender
| US$20,000.00 | 1 Set (MOQ) |
Basic Info.
Control Type
PLC
Automatic Grade
Automatic
Power Source
Electric
Type
Two Roll Mill Machine
Condition
New
Place of Origin
Shandong, China
Showroom Location
None
Diameter of Roll(mm)
400 mm
Roll Ratio(Front/Back)
1:1.27
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Applicable Industries
Manufacturing Plant
Key Selling Points
Long Service Life
Core Components
PLC, Motor
Cooling Mode
Water Cooling
Length of Roll(mm)
1000 mm
Machinery Test Report
Provided
Origin
Shandong
Product Description
Product Description Rubber mixing mill is engineered to provide unmatched performance for masticating and kneading natural rubber, synthetic rubber, eva or pvc pellets with various chemical materials, the final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products. This machine is mainly used to plastic, hot mill and mixing mill of natural and synthetic rubber for rubber product factory. Rubber mixing mill is used for plasticizing, mixing, thermal refining and sheeting of rubber(plastic), widely used for tyre factory,conveyor belt factory, reclaimed rubber factory and shoes factory, etc.Product Parameters
| Model | XK-160 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 |
| Working diameter of rolls(mm) | 160 | 250 | 300 | 360 | 400 | 450 |
| Working length of rolls(mm) | 320 | 620 | 750 | 900 | 1000 | 1200 |
| Working linear speed of front roll(m/min) | 9 | 15.1 | 15.73 | 16.25 | 18.65 | 24.5 |
| Speed ratio of front and rear roll | 1:1.35 | 1:1.1 | 1:1.17 | 1:1.25 | 1:1.27 | 1:1.27 |
| Max. gap (mm) | 4.5 | 7 | 10 | 10 | 10 | 10 |
| Max. Capacity per batch(kg) | 1-2 | 10-15 | 10-20 | 20-25 | 18-35 | 25-50 |
| Driving motor power(kw) | 5.5 | 18.5 | 22 | 37 | 45 | 75 |
| Overall size(L*W*H) mm | 1080*796*1415 | 3400*1350*1500 | 3580*1550*1695 | 3940*1780*1740 | 4200*1850*1870 | 5200*2380 *1770 |
| Around weight(tons) | 1.1 | 3.5 | 5.2 | 6.5 | 7.6 | 12.0 |
| Model | XK-550 | XK-560 | XK-610 | XK-660 |
| Working diameter of rolls(mm) | 550 | 560/510 | 610 | 660 |
| Working length of rolls(mm) | 1530 | 1530 | 2000 | 2130 |
| Working linear speed of front roll(m/min) | 22.5 | 30 | 28.6/25.8 | |
| Speed ratio of front and rear roll | 1:1.2 | 1:1.2 | 1:1.098 | 1:1.24 1:1.09 |
| Max. gap (mm) | 15 | 15 | 15 | 15 |
| Max. Capacity per batch(kg) | 50-65 | 50-65 | 90-120 | 100-150 |
| Driving motor power(kw) | 110 | 110 | 160 | 180/250 |
| Overall size(L*W*H) mm | 6320*2180*1880 | 6500*2300*2000 | 6475*3146*2035 | 7465*3662*2750 |
| Around weight(tons) | 22 | 22 | 34.5 | 43/47 |
