SS316 L Decanter Centrifuge for Alkaline Solution with High Efficiency Feature

Product Description

Product Description

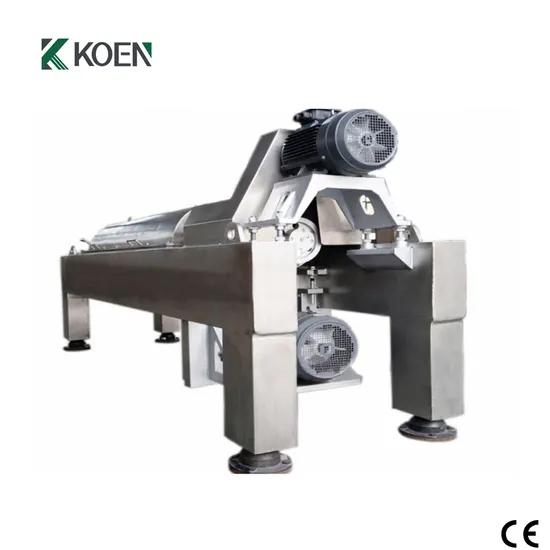

SS316 L Decanter Centrifuge for Alkaline Solution with High Efficiency Feature
Main Features:
3 phase liquid-liquid-solid Decanter centrifuges, also called tricanter , Taking advantage of the principle that the heavy liquid,light liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.It is the popular machine throughout the world and widely used in the crude oil separation.Specially used for remove sludge and water from crude oil.
Structure and Principle:
The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will collect on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Equipment characteristics:
1.Machine starts the friction to start off, about six to ten minutes. the machine runs smoothly, low noise and vibration, the
installation path is very easy to operate.
2.The bearings use imported Bearing, the main strengthen parts of Roller body and Roller cover use 2Cr13,and the other parts
of contacted materials such as feeding pipe all use SS304
3.The Stainless steel cover use SS304.
4.The base use casting steel, coating does the same way as ship bottom.
Application:
Oil: Clarification and Separation for Vegetable Oil, Animal Oil, Fish Oil, Crude Oil, all kinds of fuel oil and Luge.
Food: Juice Clarification, Beer Separation, Fermented liquid Clarification and Separation.
Pharmaceutical Industry: Extraction for Vaccine, Mycelium, Glucose, Insulin, Antibiotics, Vitamins.
Chemical Industry: Recovery for Dry cleaner solvents, Galvanized liquid, Aluminum sulfate solution, Tar water mixture, PVC,
Polypropylene, Argentum (In the film processing), Catalyst and Magnet.
Traditional Chinese medicine: Clarification and Separation for Plant Extraction
Separation Results:
Detailed Photos

	PLC Control Panel The electrical control adopts the double conversion auto control system, which can display the parameters such as frequency,rotation speed, differential speed and current of operating major and auxiliary electrical engine.
	The drum of the decanter can be made of SS304 or SS316, or it can be centrifugal cast with duplex stainless steel 2205 or 2304. The frame is made of painted carbon steel on the outside and stainless steel on the inside. The upper casing will be made of painted carbon steel or stainless steel.
	The solid discharge outlet is replaceable sintered tungsten carbide or cemented carbide. Others can provide several types of wear protection to minimize wear: thermal spraying coating, sintered tungsten carbide parts,.etc.
	Screw with BD plate can concentrate, dehydrate, and separate difficult to separate materials from various initial sedimentation and activated sludge ratios, Further forced separation and pressure pushing of materials can improve processing capacity and effectiveness.
	The feed inlet, solid discharge area, drum, and spiral blades are all protect by wear-resistant materials, and the selection of materials is matched with the wear patterns in each specific industrial process. To a certain extent, it is possible to replace several or all wear protection components, reduce maintenance

Product Parameters

Model	LWS355X1460-N	LWS450X1800-N	LWS520X2080-N	LWS650X2600-N
Bowl diameter	355 mm / 14 in	450 mm/18 in	520 mm/ 20 in	650 mm/26 in
Bowl length	1460 mm/57 in	1800 mm/71in	2080 mm /82 in	2600 mm/102 in
Max, Speed	3500 rpm	3200 rpm	3000 rpm	2500 rpm
Typical speed	2800rpm	2500 rpm	2300 rpm	1800 rpm
G force	2435	2580	2620	2275
Capacity	5m³/h	12m³/h	15m³/h	25m³/h
Main drive motor	15kw	37 kW	45-55 kW	75-79 kW
Back drive motor	7.5kw	11 kW	11-22 kW	30 kW
Dimensions	3430*920*1220mm 135*36*48in	4000*1320*1150mm 157*52*45in	4510*1410*1170mm 178*56*46in	50*1800*1450mm 199*71 *57in
Weight	2480	4200kg	5000kg	8900 Kg

Notes:★ The actual processing capacity depends on the particle size and the specific application All contact material can made by SS304 ,SS316L , duplex steel . And the machine surface can be painted or full stainless steel . depend on customized
Customer workshop :
Company Profile

Packaging and deliver :
Company :
Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use Internationally renowned brand Inverter and PLC . Good quality materials and the best production process
Q2.What's the Payment?
A: T/T, Western Union, L/C, Ali Pay, etc
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:18 months after install .
