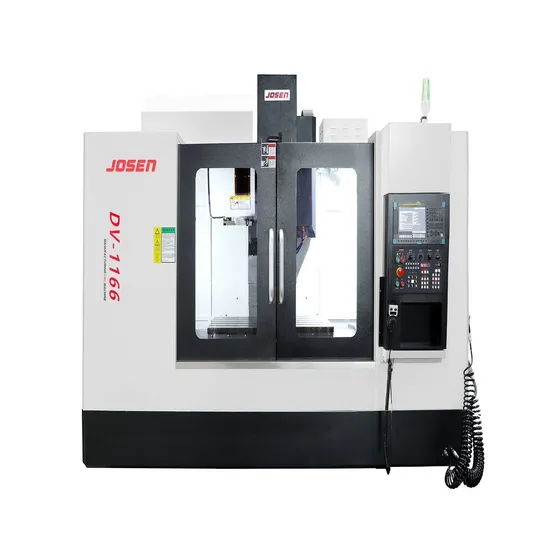

China Manufacturer Vmc1160 CNC Vertical Machining Center Mahchine for Sale
| US$20,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DV1166
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Speed
4000r/Min
Bed Slope
15 Degree
Feature
35 Degree Bed Structure
Function
Turning Milling Compound
Transport Package
Iron/Wooden Bracket, Wood Case
Specification
2600*1800*1900
Trademark
Josen
Origin
China
Production Capacity
1000set/Year
Packaging & Delivery
Package Size
270.00cm * 190.00cm * 225.00cm
Package Gross Weight
3600.000kg
Product Description
Main Features:| 1.The machine adopts an integral 35°bed structure, which has good rigidity and stability. 2.The two axis guide rail adopts imported overweight line rail sliders, and the optional servo turret, power turret, power head, and the spindle adopts an independent spindle unit, which has good rigidity, low noise, and high precision, and is suitable for secondary processing and molding of complex parts. 3.The machine adopts an integral high and low rail bed structure, which has good rigidity and stability. The two axis guide rail adopts imported overweigh troller line rail slider, which can be equipped with aY axis structure. 4.The 12/15 station power servo turret is used. The spindle adopts an independent spindle unit, which has good rigidity, low noise and high precision, and is suitable for secondary processing and molding of complex process parts. 5.The electric box structure adopts double-layer waterproof design, and water will not enter from the door seam Inside the electric box. 6.The protection circuit design is complete, and the electric box layout is safe, clear, and standardized, which fully conforms to the electrical safety specification. 7.In order to ensure the safety of operators, the whole series of machines are equipped with safety door locks. If the operation door is opened during operation, the machine will automatically stop and send an alarm. 8.Equipped with automatic oil injection machine, quantitative filling, no waste of oil. Do not waste resources, effectively ensure the spindle oil supply and lubrication, prolong the service life of the spindle. 9.Using foot pedal, let the operator in both operation NC lathe parts installation, adjust positioning, using the foot switch to complete the hydraulic casket, hydraulic tail seat, hydraulic center frame and functional components such as movement, can complete the installation, positioning and clamping of parts at the same time, greatly improving the production efficiency. 10.When the machine tool uses the water quality coolant, due to the different density, the liquid surface is often floating debris or oil quality, equipped with oil and water separator, enhance the vitality of coolant, prolong the service life of coolant, more energy saving. |
Basic specifications:
| Main technical parameters | Unit | DV 855 | DV 1166 | DV 1266 |
| X-axis travel | mm | 800 | 1100(Total travel 1000) | 1200 |
| Y-axis travel | mm | 500 | 620 | 620 |
| Z-axis travel | mm | 550 | 600 | 600 |
| Distance from nose of spindle to table surface | mm | 120-670 | 125-725 | 125-725 |
| Working table size (X*Y) | mm | 1000*500 | 1200*600 | 1300*600 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*80 | 18*5*100 | 18*5*100 |
| Max. loading capacity of working table | KG | 600 | 900 | 1000 |
| Spindle motor (continuous/30 minutes) | kw | 7.5/11 | 11/15 | 11/15 |
| Spindle speed | rpm | 10-10,000 | 10-10,000 | 10-10,000 |
| Spindle inner taper bore | BT40 | BT40 | BT40 | |
| X/Y/Z axis motors | kw | 1.8/1.8/3 | 3/3/3 | 3/3/3 |
| Rapid feed rate (X/Y/Z) | mm/min | 48000/48000/48000 | 36000/36000/36000 | 36000/36000/36000 |
| Fastest cutting feed rate | mm/min | 1-10,000 | 1-10,000 | 1-10,000 |
| Tool magazine capacity (standard/optional) | set | 24 | 24/30 | 24/30 |
| Tool magazine form | Tool disc type | Knife disc type | Knife disc type | |
| Tie rod bolts form | MAS-P40-1(45°) | MAS-P40-1(45°) | MAS-P40-1(45°) | |
| Maximum tool diameter of adjacent tools | Ø80 | Ø80 | Ø80 | |
| Max. tool diameter of empty adjacent tool | Ø150 | Ø150 | Ø150 | |
| Maximum tool length | mm | 300 | 300 | 300 |
| Maximum tool weight | kg | 7 | 8 | 8 |
| Positioning accuracy (full stroke) | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeat positioning accuracy (full stroke) | mm | ±0.003 | ±0.003 | ±0.003 |
| Controller | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF | |
| Water tank capacity | liter | 220 (rear drainage) | 270 (rear) | 270 (Rear row) |
| Pneumatic pressure requirements | kg/cm2 | 6 | 6 | 6 |
| Power Specifications | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | |
| Electricity demand | KVA | 25 | 50 | 30 |
| Floor space (L*W) | mm | 2500*2800 (rear row) | 2780*3150 (rear row) | 3250*3150 (Rear row) |
| Machine height (maximum) | mm | 2800 | 2865 | 2865 |
| Machine weight | T | 5.1 | 6.5 | 6.6 |
