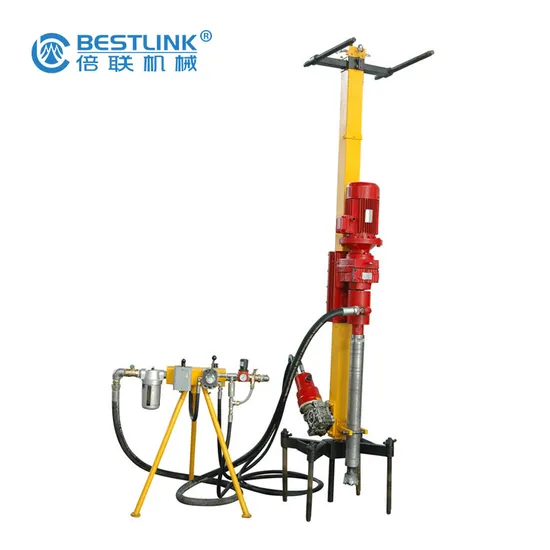

Bestlink Bq90-P Multi-Angle Drilling Pneumatic DTH Driller
| US$5,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BQ90
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
ISO 9001
Condition
New
DTH Hammer
CIR65-90
Working Air Pressure
0.5-0.7 MPa
Power
Pnuematic
Drill Orientation
Multi
Transport Package
Wooden Case
Specification
ISO
Trademark
BESTLINK
Origin
Xiamen, China
HS Code
84671100
Production Capacity
500sets/Month
Product Description
Bestlink Bq90-P Multi-Angle Drilling Pneumatic DTH DrillerBQ-90P DTH driller is a new model drill machine, we develop it specially used for stone quarry and the drilled hole can be different diameter, depth, multi-orientation & angle.
Now it's the indispensable products for mine quarrying, stone dynamiting and diamond wire passing.
Advantages:
1) Light weight, easy installation and transportation
2) The high quality pneumatic components ensure the low energy and air consumption and high efficiency
3) The good hoisting ability
4) The particular mechanical tube devices for screwing and discharging to reduce the labor intensity
5) The particular design for guiding drilling
Technical Data:
Name | BQ-90P Pneumatic driller |
Max. depth of drilling | 35-40m |
Diameter of drilling | Φ65-90mm |
Drilling speed | 6~8m/h |
Minimum air pressure | 0.5-0.7MPa |
Total compressed air consumption | 7~9m³/min |
The hole hammer | CIR65-90 |
Track travel | 1.2m |
Advance device | pneumatic motor, reducer, chain |
The pneumatic rotation head | pneumatic motor, reducer |
Drilling direction | any direction |
Adjust height of the down jack | 220mm |
Pneumatic control panel | remote control, manual change direction |
Total weight | 250Kg |
Detailes of BQ90-P pneumatic DTH driller:
