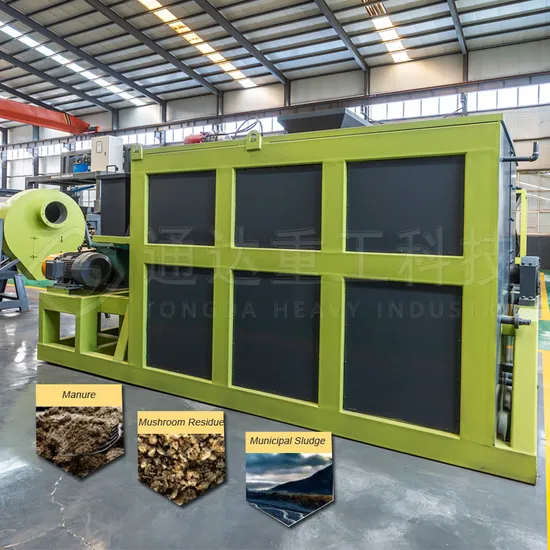

Organic Waste Recycle Treatment Poultry Farming Horizontal Organic Fertilizer Rapid Fermentation Tank

Product Description

Product Description
The organic fertilizer horizontal fermentation tank controls the temperature between 65-75 ºC through ventilation, oxygenation, and stirring, achieving the temperature for material fermentation treatment. When the temperature is reached again, it can cause a large number of pathogenic bacteria and parasites in the pile to die. At the same time, the deodorization system is used to treat the emitted gas with biological odor, achieving the goal of harmless treatment. The product obtained from high-temperature aerobic fermentation can be used for soil improvement, landscaping, landfill cover soil, etc.
Product Parameters
Advantages of horizontal fermentation tank products:
1. Low energy consumption: Energy conservation and emission reduction, low energy consumption. High temperature aerobic fermentation has a short fermentation cycle, small floor area, and high degree of automation.
2. Fast fermentation speed: Under normal circumstances, fermentation is completed in 7 days, with wide adaptability, suitable for both north and south, and not affected by temperature.
3. Wide applicability: suitable for uniformly mixing powders and liquids of various components.
4. Low material residue: The powder material adopts a pneumatic large door structure, which has fast unloading and no residue.
5. Customized support: 5-50M3 fermentation tanks with different capacities and forms (horizontal, vertical) can be customized according to customer needs.

Model	Heating Power(kw)	Stirring Power(kw)	Reducer Model	Stirring Speed(r/min)	Dimensions(mm)
15m³	30	22	ZQD850-291.19	3.4	6000*2600*2800
20m³	30	37	ZQD850-163.38	6	7400*2820*3260

Horizontal fermentation tank structure:
Firstly, the material to be fermented is fed into the fermentation tank through a belt conveyor from the feeding port. While feeding the material, the main motor is started, and the main shaft is driven by the motor reducer to start stirring. At the same time, the spiral blades on the stirring shaft flip the animal material, allowing the material to fully contact the air and start the aerobic fermentation stage of the material to be fermented.
Secondly, the heating system of the bottom electric heating rod is controlled by the electric box to start heating the thermal oil in the interlayer of the fermentation tank. At the same time, the temperature of the tank is regulated by a temperature sensor to control the temperature of the fermentation tank in a good state required for fermentation. After the material fermentation is completed, the tank is discharged through the discharge port for the next processing step.
Detailed Photos
The basic principle of a horizontal fermentation tank for organic fertilizer is high-temperature aerobic fermentation, which can be used to treat various organic waste such as animal manure, organic waste residue, and crop straw. The harmless treatment process can be completed in about 10 hours. As a new generation equipment in the organic fertilizer industry, the rapid fermentation tank has changed the traditional pool fermentation process, greatly improving production efficiency, and taking the production of organic fertilizer products to a higher level.
Company Profile

After Sales Service
Notice:
And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.
The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.
Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.
Notice: 1.Big machines packed in nude or shipping in containers. 2. Spare parts packed in wooden case. 3. If you have any special requirement, we will pack as request. FAQ
1. Are you trading company or manufacturer ? We are a manufacturer with a history over 40 years and have realized one-stop service for design, manufacture, installation, debugging and technical training. 2. How long is the delivery time? For standard machines or Components, it would be 5-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time. 3. Do you arrange shipment for the machines? Yes, we will do that. For FOB or CIF price, we will arrange shipment for you. For EXW price, we will assist you in arranging shipment. 4. How about your product after-sales service? Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service. Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver. 5. What kinds of certificate you have? ISO 9001: 2015 SGS and we can make other certificates according to customers' detailed requirements. 6. How to guarantee the quality and operation before loading? We have our own quality control department and have advance quality control stystem while from raw materials to finished products. All the machines and production lines shall be 100% checked and tested before delivery.
