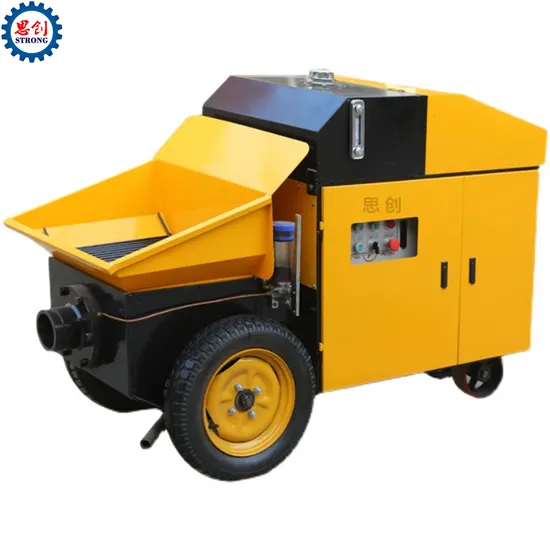

Factory Supply Small Hydraulic Concrete Pump for Injection Building

Factory Supply Small Hydraulic Concrete Pump for Injection Building

US$3,500.00-13,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SC-15A/SC-15B/SC-20/SC-30/SC-40
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE, TUV
Condition
New
Color
Yellow
Name
Concrete Pump
Type of Distribution Valve
S Tube Valve
Voltage
380V
Advantage
Remotely Operated
Price
Affordable
Business Type
Manufacturer
Shipping
by Sea
Transport Package
Wooden Cases
Specification
SC-15/SC-20/SC-30/SC-40/SC-50/SC-60
Trademark
SiChuang
Origin
Xingtai City, Hebei Province, China
HS Code
8413400000
Production Capacity
3000pieces

Product Description

The power system, hydraulic system and pumping system of the concrete delivery pump shall be reasonably matched to effectively give full play to the maximum power of the motor. The actual pumping efficiency of Mini Concrete Pump reaches more than 80% of the theoretical value. The configuration of the Electric Concrete Pump is more optimized. The imported hydraulic parts and electrical components are used to greatly improve the reliability of the equipment. The Hydraulic Concrete Pump adopts the unique distribution oil circuit buffer technology to ensure that the S pipe swings in place and prolong the service life of the S pipe. The application of high and low pressure switching of Concrete Mixer Pump simplifies the operation mode. The Concrete Mixer pump lubrication system adopts the forced filtration and pre compression dual pump energy-saving automatic centralized oil supply system, which can provide sufficient oil supply, better lubrication effect, and save consumption, reducing the consumption by more than 50% compared with the ordinary continuous oil injection. With the application of new wear-resistant materials and welding technology, the service life of common wearing parts of Trailer Concrete Pump is doubled. The power system of the Diesel Concrete Pump adopts the international brand hydraulic main pump, and the motor adopts the domestic famous brand to provide strong power. The hydraulic system of the Concrete Delivery Pump has a unique open hydraulic system and proprietary hydraulic buffer technology, which makes the system have less reversing impact and less heating. At the same time, the heavy-duty hydraulic main pump and hydraulic valve of international famous brand are selected. The displacement of the main pump is large and the diameter of the hydraulic valve is large, so as to ensure the safety and reliability of the concrete pump.
Model SC-15A SC-15B S-20 SC-30 SC-40 SC-50 SC-60
Voltage (V) 380 380 380 380 380 380 380
Power (KW) 15 15 22 30 45 55 75
Efficiency (M³/H) 5-8 5-8 8-10 15 30 30-50 40-55
Conveying Distance (M)
Aggregate Diameter(0.5-15MM)
Vertical 20 20 40 60 120 180 200
Horizontal 60 60 120 150 300 500 550
Conveying Distance (M)
Aggregate Diameter(10-20MM)
Vertical 15 15 20 30 50 80 100
Horizontal 45 45 60 80 150 250 280
Conveying Distance (M)
Aggregate Diameter(10-30MM)
Vertical 20 40 70 80
Horizontal 60 120 200 230
Specification Of Transmission Pipeline (MM) 80 80 80 80 80/100 80/100/125 80/100/125
Hydraulic Cylinder Specification (MM) 120*600 100*500 120*650 140*750 160*1000 200*1000 200*1300
Outlet Diameter (MM) 125 100 100 125 125 180 180
Dimension (M) 1.7*0.6*1.1 1.7*0.7*1.1 3*1.2*1.5 3.4*1.3*1.6 4*1.5*1.6 4.2*1.6*1.7 4.3*1.6*1.7
Weight (KG) 650 900 1400 1700 2500 3000 3300

FAQ
1.What about the payment term&price term?
As usual, we accept T/T as the payment term, and the price term FOB is ok.

2.Are you a trading company or a factory?
Xingtai Sichuang Manufacturing Co., Ltd. is a manufacturer in Hebei Province, China. we have specialized in we have specialized in crane&winch over 10 years, our high quality products were welcomed in many countries.
3.How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
4.How about the packing?
Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
5. What's the delivery time? Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10 pieces products, if more quantity, it depends.
6. Questions before quotation?
Capacity? Lifting height? Voltage? Quantity? The more details the more accurate price quotation. Thank you.
7.what about our winches features?
1, Compact structure and reasonable design
2, Easy to install, operate and maintenance
3, Low noise and good working condition
4, Three-phase power supply, suitable for a wide range of applications
5, Simple structure, easy to identify the cause of the failure, easy to repair and maintain
