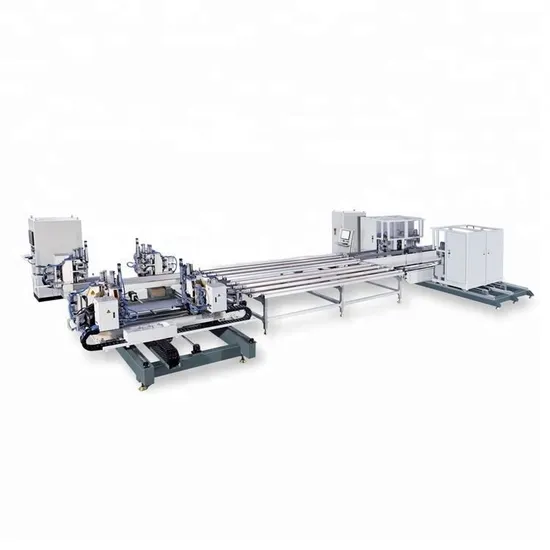

Automatic PVC Profile Welding and Corner Cleaning Machine for UPVC Window

Product Description

Automatic pvc profile welding and corner cleaning machine for upvc window
Equipment Features for Automatic pvc profile welding and corner cleaning machine for upvc window
Glasino automatic welding and cleaning line is used for automatically finish the welding, convey and welding corner cleaning of PVC win-doors rectangular frame or fan. -----This welding-cleaning production line is mainly composed of welding unit, transfer unit, corner cleaning unit and manipulator. -----Independent research and development of the intelligent corner clearing line, the production line only needs 1 person to operate independently from the rectangular frame (fan) welding, conveying, clearing corners, and automatic palletizing.
-----8-hours output are about 350pcs rectangular frames (fans).
----This production line will saves about 5 people and increases the output more than 3 times
Details of Automatic pvc profile welding and corner cleaning machine for upvc window:
Working samples of Automatic pvc profile welding and corner cleaning machine for upvc window:
Technical Parameter

Input power	380V50HZ
Total Power	15KW
Working pressure	0.5-0.8Mpa
Air consumption	200L/min
Max. Welding frame	2600×2200mm
Min. Welding frame	650×460mm
Welding height	20-120mm
Welding width	120mm
Maximum transmission speed of intermediate section	30m/min
Weight	5200KG
Overall dimension	About 16000mm×5000mm×2200mm

Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.
