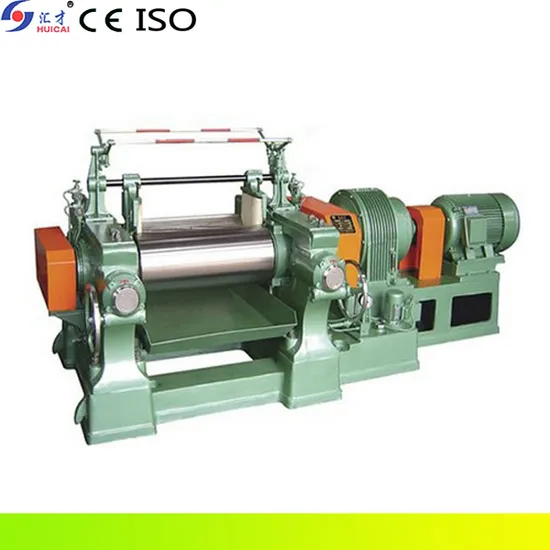

Rubber Open Mixing Mill Machine

Product Description

Why choose our company?
1. AAA grade credit enterprise.
2. With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.
3. Exported to more than 20 contries with good quality. Example: The good year company in Chile...
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Why choose our this machine?
1. Roller is made by special technology. There are normal roller and alloy roller for the customer to choose.
2. All of these adopt hardened gear reducer made of 35CrMo to reduce the speed. It has the advantages of low noisy, large transmission power, wear-resistant and impact resistance.
3. Adopt quenching gear to drive and increase the life of the whole machine.
4. Adopt foreign technology to weld the steel pedestal which is non-deformation, non-fracture. It can avoid the expense caused by wrong operation.

Type		XK-250	XK-400	X(S)K-450	XK-560C	XK-560
Working diameter of rolls(mm)		250	400	450	560 front roller, 510 back roller	560 front roller, 510 back roller
Working length of rolls(mm)		620	1000	1200	1530	1530
Working Linear speed of front roll(m/min)		15.1	18.65	24.5	27.87	27.7
Friction ratio of front roll(m/min)		1:1.1	1:1.27	1:1.27	1:1.2	1:1.2
Capacity per.batch(kg)		10-15	18-35	25-50	50-60	50-65
Driving motor power		18.5	37	55	90	90
Overall size(mm)	L	3400	4250	5200	6220	6120
	W	1350	1850	2380	2284	2300
	H	1500	1870	1770	2045	2000
Weight(KN)		35000	80000	120000	216000	220000
Notes		Nylon bush grease LUB	Nylon bush grease LUB oil LUB Bearing			Nylon bush is grease LUB oil LUB
